Single Screw Oil Press Machine Soybean Oil Making Machine Big Capacity For Cooking Oil
Single oil press machine soybean oil making machine for cooking oil
Product Description
1. Single oil press machine has function of auto controlling the temperature of the press chamber, replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and machine’s abrasion.
Working principle:
Under the combined effects of several forces, such as the pressure generated as the space in the squeeze chest becoming smaller,the propulsion of the revolving spiral axes, the resistance of the multilateral arc curves on the squeeze loops, the extrusion &friction between the oil plants, oil squeezed from the oil plants comes out from the squeeze bars and the grooves of the squeezeloops. The residue is conveyed to the end of the press chest and discharges in thin strips of oil cake from the space between thecake adjuster and the loop for cake out. Then the whole separation process of oil from oil plants is completed.
Size Information
|

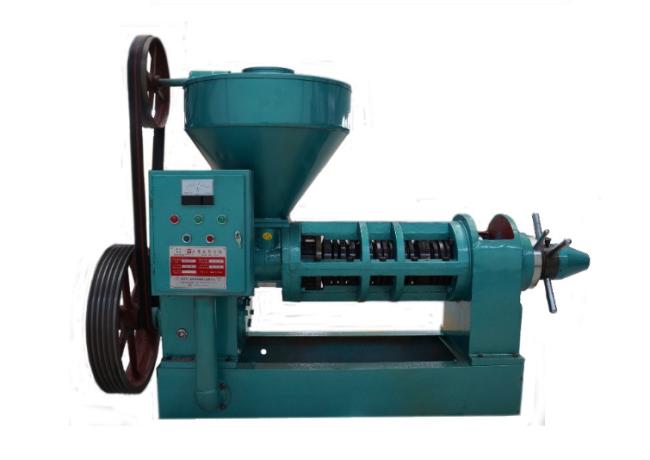

YZYX90WK oil press machine
|
|
Processing capacity(t/24h)
|
≥3.5
|
|
Residual oil of the cake(%)
|
≤7.5
|
|
Spiral axes rotate speed(r/min)
|
32-42
|
|
Temperature control power(kw)
|
2.65
|
|
Main motor power(KW)
|
5.5
|
|
Size(mm)
|
1200*550*1000
|
|
Weight(Kg)
|
285
|
Detailed Images
And it has special advantages as below:

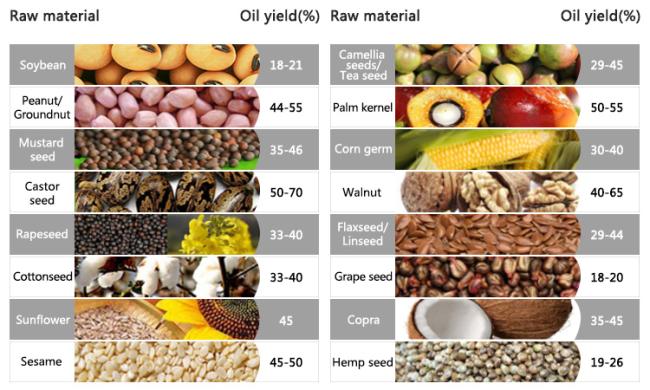

1. More than 30 types of oil plants, such as rapeseed, cotton seed, soybean, shelled peanut, flax seed, sunflower seed and palm kernel, etc.
2. Used in oil factory, oil mill and private oil production workshop.
3. Good both for pressing raw oil material and roasted oil material.
4. Performs well both in cold pressing and hot pressing.
5. The lower residue oil of the dry cake.

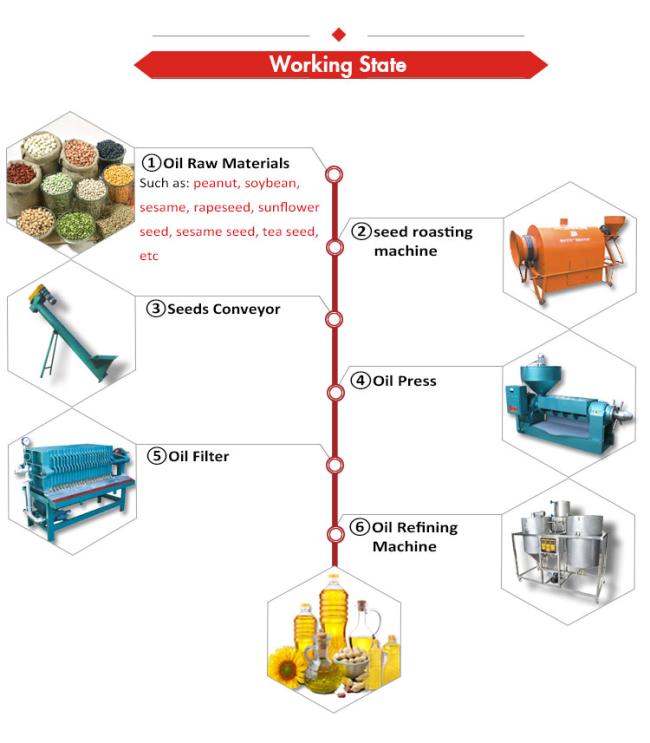

Working state
After Sales Service
PROVIDE QUALITY SERVICE
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Before delivery
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
Company Introduction
Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
Related Products
We also can equip other machine for oil processing line
