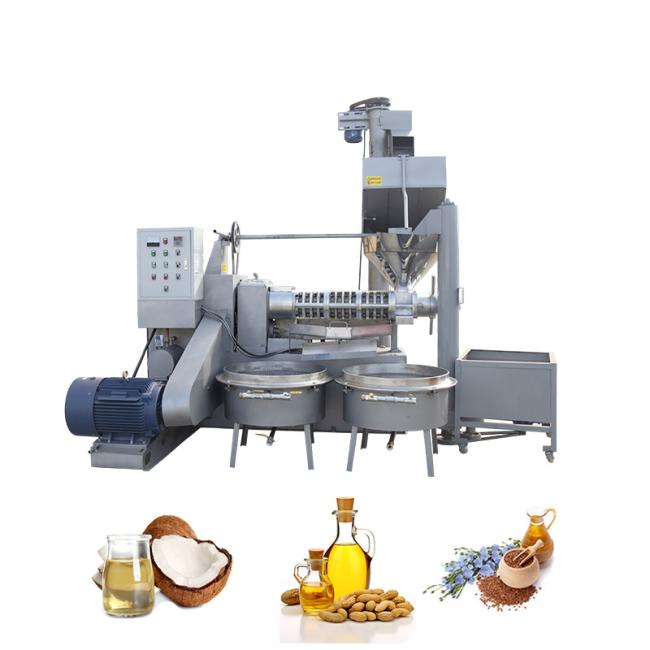

Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield
Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield
Production description of Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield
Main engine of Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield includes motor, bar press system, gearbox, hopper, oil cake storage, oil filter system, oil cake feeding system.
The material will be put into hopper of Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield at first, then material will into bar press system of Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield, and material will be pressed by bar and screw squeezer, the oil will come out from the oil line and into oil filter system to filtering, you will get the pure oil after these process.
Parameter of Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield:
| Model | 6YL-120 |
| Weight | 1500KG |
| Vacuum Power | 2.2KW |
| Main Power | 15KW |
| Squeezer speed | 60-100 RPM |
| Capacity (Kg/h) | 120-160 |
| Dimension(mm) |
2000*1600*2700 |
We also have other models for your choose:
| Model | 6YL-130A | 6YL-160 | 6YL-180 | 6YL-220 | 6YL-230 | 6YL-290 |
| Weight | 1680 kg | 1900 kg | 1980 kg | 2000kg | 2100kg | 2300kg |
| Vacuum power | 1.1 kw | 2.2 kw | 2.2 kw | 2.2 kw | 2.2kw | 3 kw |
| 3phase | 18.5 kw | 30 kw | 37 kw | 37 kw | 37 kw | 45 kw |
| Squeezer speed | 60-100RPM | 60-100RPM | 60-100RPM | 100-130RPM | 100-130RPM | 100-130RPM |
| Capacity(kg/h) | 160-280 | 300-600 | 400-750 | 450-800 | 500-900 | 600-1000 |
| Dimension(m) | 2.15*1.6*2.7 | 2.65*1.9*2.7 | 2.7*2*2.7 | 2.82*1.9*2.7 | 2.92*1.9*2.7 | 3*2.2*2.95 |
Main Features of Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield
1. The Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield is a new research improvement product.
2. The Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield can be squeezed more, saving time, effort and space. It is easy to operate so that one person can operate it.
3. Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield can set the heating temperature, directly filter while pressing and has high oil yield and pure oil.
4. This Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield can work continuously for 24 hours. The service life of this machine is ten years or longer.
5. The L shape of oil cake feeding system of Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield can directly press the oil cake twice.
6. The diameter of the spiral squeezer of Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield is longer than other similar product.
The Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield can press many different oil seeds, and it also can be cold and hot press.
Parameter of Seeds:
| Oil seeds | Oil Rate |
| Sesame | 40%-50% |
| Walnut | 45%-55% |
| Coconut | 48%-58% |
| Sunflower | 40% -50% |
| Rapeseed | 30%-40% |
Our service
After-service of Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield:
1.Peanut / Rapeseed Screw Oil Press Machine Oil Press Extractor High Oil Yield are guaranteed to keep in good repaired for one year. During the one year, the seller will provide free maintenance service. (Expect for failures and damage caused by human and force majeure.)
