Vacuum Filtration 750Kg/H 100RPM Screw Type Oil Expeller
Cold And Hot Press Oil Machine Screw Oil Press Machine High Oil Yield
Cold And Hot Press Oil Machine Screw Oil Press Machine is suitable for cold pressing or hot pressing many oil seeds and oil plant, Especially for pressing peanut, soybean, coconut, sesame, pine nut, walnut, and so on valuable oil seeds.
Main Features:
1. Cold And Hot Press Oil Machine Screw Oil Press Machine with vacuum filtration, fast purification and automatic temperature control technology.
2. High oil yield, about 3% higher than the average oil press, and easy to install.
3. The oil is purity and can be eaten directly after vacuum filtration.
Working Principe:
Screw oil press machine is specially for cold and hot press.
The material was push by the press screw and squeezing during the pushing by the different capacity of the press kettle, the oil will discharge from the space of the cage bar or the oil pocket.
After the vacuum oil filter, the quality of the oil can be reached to the cooking grade.
Parameter:
1.We have many models for you choose.
2.We also accept custom models.
| Model | Weight | Power | Squeezer speed | Capacity | Dimension(mm) |
|---|---|---|---|---|---|
| 6YL-70 | 780kg | 4kw | 60-100rpm | 50-100kg/h | 1700*1200*1500 |
| 6YL-120 | 1500kg | 15kw | 60-100rpm | 120-160kg/h | 2000*1600*2700 |
| 6YL-130 | 1600kg | 22kw | 60-100rpm | 180-300kg/h | 2150*1600*2700 |
| 6YL-130(A) | 1650kg | 18.5kw | 60-100rpm | 160-280kg/h | 2600*1600*2700 |
| 6YL-150 | 1800kg | 30kw | 60-100rpm | 220-450kg/h | 2550*1800*2700 |
| 6YL-160 | 1900kg | 30kw | 60-100rpm | 300-600kg/h | 2650*1900*2700 |
| 6YL-180 | 1980kg | 37kw | 60-100rpm | 400-750kg/h | 2700*2000*2700 |

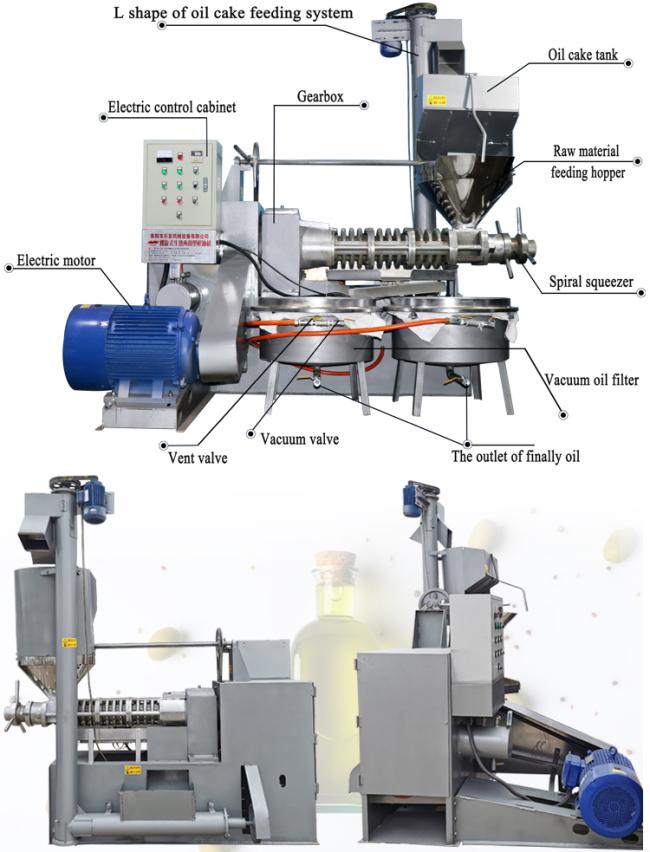

Structure:

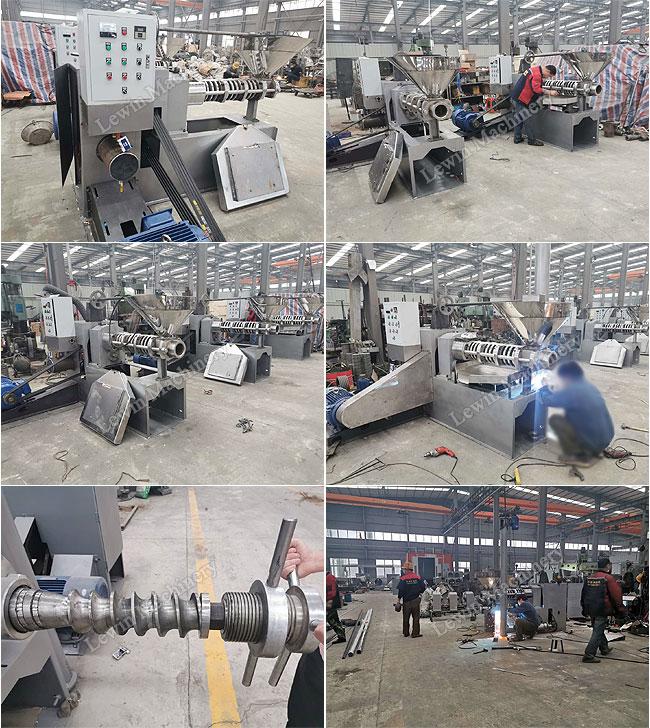

Workshop:

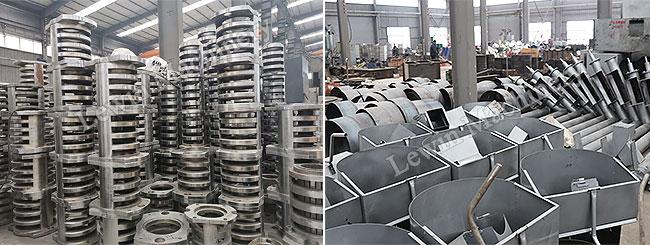

I. Adequate inventory
II. Engineers working
About us:
Our service:
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
