220-450 kg/h Spiral Oil Extraction Machine Oil Expeller Device Oil Plant
Hydraulic Oil Extraction Machine 220-450 kg/h Oil Expeller Device Oil Plant
Brief Introduction:
1. The Fully Automatic 6YL Spiral Oil Press Machine is a new developm improvement product.
2. The equipment can press different kinds of oil materail, high efficiency, cold and hot press. It is easy to operate, just one person can operate it.
3. This equipment can work continuously for 7*24 hours. The service life of this equipment is ten years or longer.
4. The vacuum oil filter can help you to get food pure healthy oil directly, you can sale it in local market.
Keywords:
1. Key parts
The main components of our machines are made by ourselves to guarantee the quality of the machine and the oil rate.
2. Healthy and Natural
The oil filteration is dense that you can get clean oil.
3. Get more oil
The diameter of the spiral squeezer is longer than other similar products and the squeezer speed is low so that the raw material can be pressed clean.
4. High efficiency
The L shape of oil cake feeding system can directly press the oil cake twice, then you can get more oil.
5. Temperature Control System
The temperature of the oil is automatically temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.
Working priciple:
The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.
Technical parameters of oil presser:
| Model | 6YL-120 | 6YL-130 | 6YL-150 | 6YL-160 | 6YL-180 |
| Weight | 1200 kg | 1600 kg | 1800 kg | 1900 kg | 1980 kg |
| Vacuum power | 1.1 kw | 1.1 kw | 2.2 kw | 2.2 kw | 2.2 kw |
| 3phase | 15 kw | 22 kw | 30kw | 30 kw | 37 kw |
| Squeezer speed | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 |
| Capacity(kg/h) | 120-160 | 180-300 | 220-450 | 300-600 | 400-750 |
| Dimension(mm) | 2000*1600*2700 | 2150*1600*2700 | 2550*1800*2700 | 2650*1900*2700 | 2700*2000*2700 |

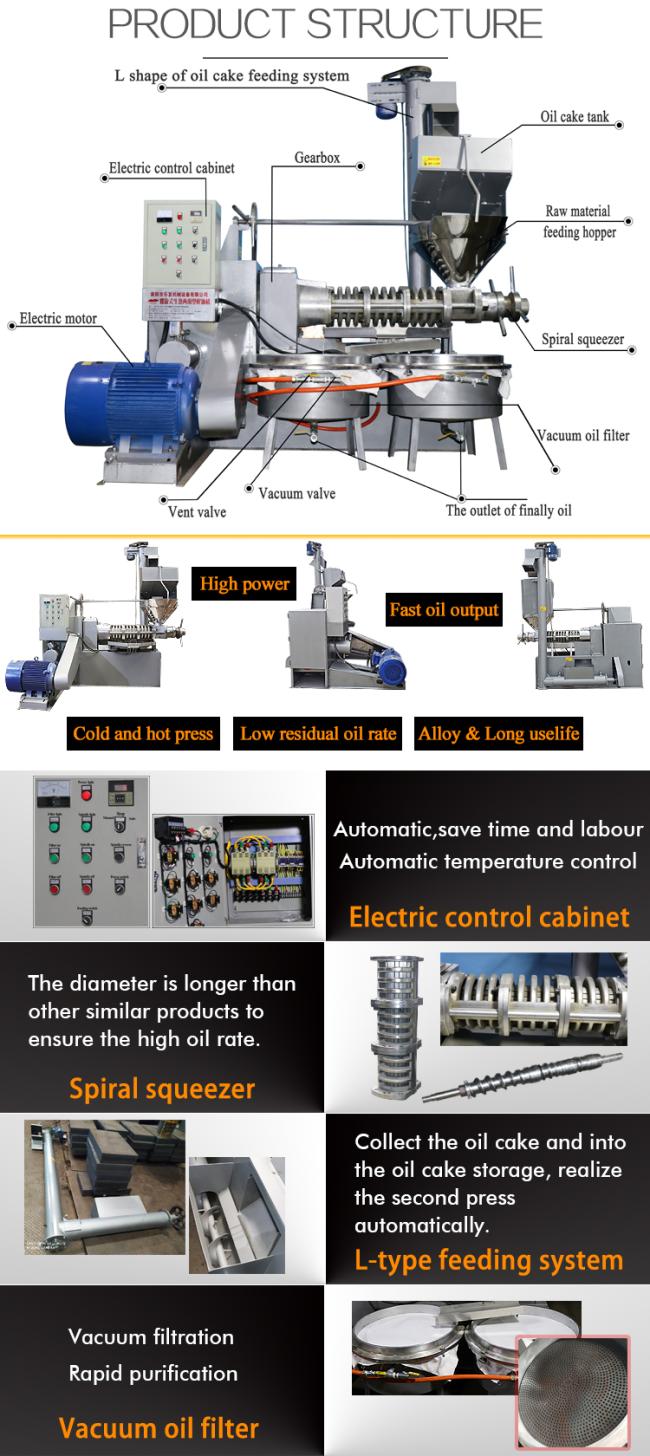

Detailed Photos
Parts of high quality oil presser:
Seeds application of screw oil making machine
If you want to process other special raw material, please cantact us to ensure.
Workflow
Packing & shipping
We use strong wooden case to ensure the safety of your goods in transit.
Our service
Provide quality service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
