Magnet Install Outdoor SMD LED Display 4.75mm Pixel Pitch High Performance Shenzhen Factory
Hotel Supermarket Use SMD LED Display Module Wide Working Temperature
Applications
Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.
What we can do
* Project advise,Make the easy project design,easy for install and service
* Free on-line support
* We will send the setting file send with the goods. And also we will keep the Project file.

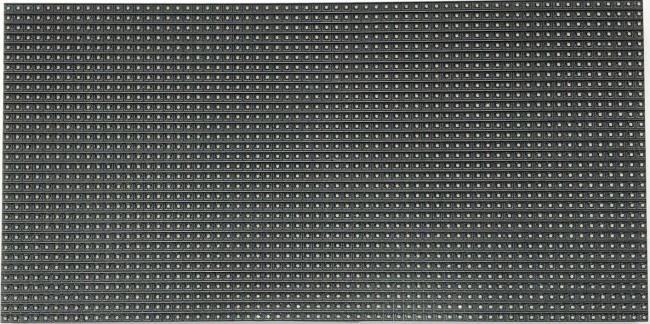

P4.75 SMD indoor RG
Description:
Size: 304mm*152mm
Resolution: 32dots*16dots
Lamp: SMD 2020
Driving Method: 1/16 Scan
Module brightness:5000mcd
Display Fresh requency: 1920Hz
Working environment: Outdoor
Parameter:
| Pixel pitch | 4.75 mm |
| LED Lamp type | 3in1RGB 2020 |
| Module size | 304mmx152mm |
| Pixels Density | 44321 pixel/㎡ |
| Brightness | 800cd/㎡ |
| Scan type | 1/16 Scan |
| Frame Rata | 60HZ |
| Maximum consumption | 700W/㎡ |
| Ave power consumption | 250W/㎡ |
| Led module weight | 9.18kg/㎡ |
| Led display weight(Die-case) | 28kg/㎡ |
| Working Temp | -20℃ to +60℃ |
| Horizontal View Angel | 140degree |
| IP grade | IP33 |
| Cabinet suggest | 640*640mm/960*960mm |

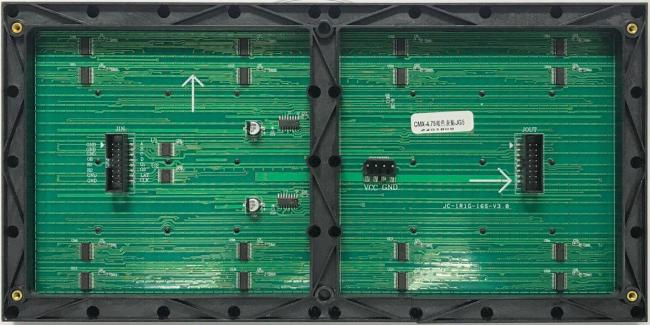

Module Dimensions:
Production line

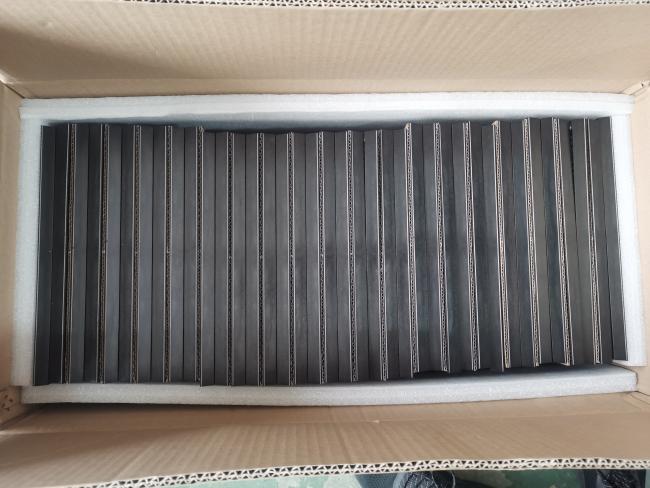

Packaging and shipping
Packing:1. Paper box packing and Water proof packing
Delivery: Shipping by sea,air or DHL,multiple shipping ways for your choice.
