HD Outdoor LED Signs For Business 3mm Pixel Pitch 1152mm*1152mm Wifi Control
Price:
Negotiable
MOQ:
no requirement
Delivery Time:
15Days
Brand:
SMART LED
Product Description

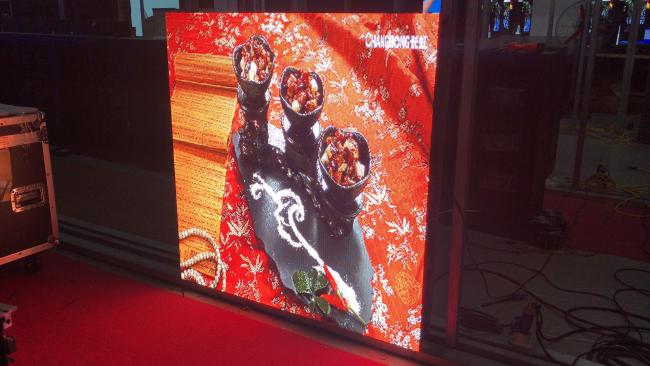

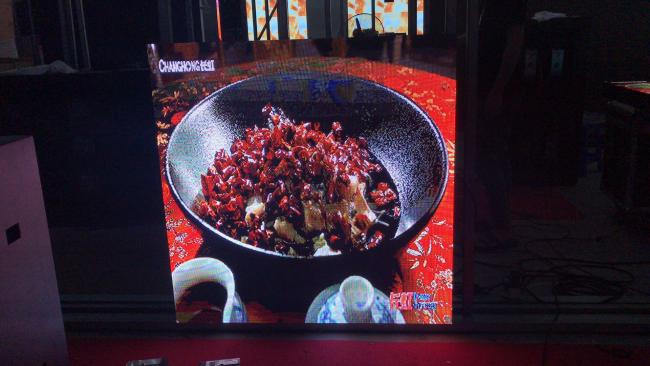

HD Outdoor LED Display Water proof P3 1152mm*1152mm Wifi Controller
Applications
Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.
What we can do
* Project advise,Make the easy project design,easy for install and service
* Free on-line support
* We will send the setting file send with the goods. And also we will keep the Project file.
 PH3mm LED SMD Outdoor Display Specification |
||||||
| Technicial Parameters | ||||||
| LED Parameters | ||||||
| No. | Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition | |
| 1 | Red LED (Epistar DICE) | 800-1000 | 140º/120º | 620-630nm | 25℃,20mA | |
| 2 | Green LED(Epistar DICE) | 1300~1500 | 140º/120º | 520-535nm | 25℃,20mA | |
| 3 | Blue LED (Epistar DICE) | 250~500 | 140º/120º | 465-475nm | 25℃,20mA | |

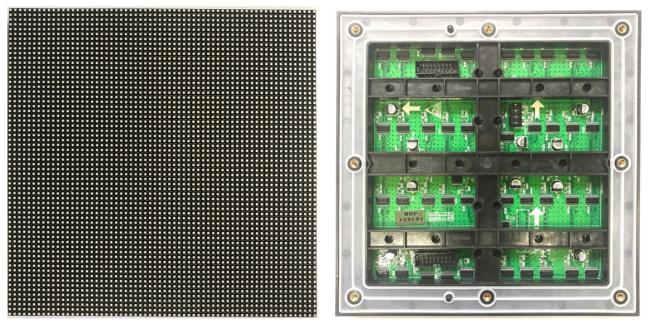

| Module Specifications | ||||||
| 1 | Pixel Pitch | 3mm |  |
|||
| 2 | Pixel Configuration | 3-in-1, SMD 1921 | ||||
| 3 | Module Size | 192mm X 192mm | ||||
| 4 | Module Resolution | 64 * 64 | ||||
| 5 | Hub connecting | HUB75 | ||||
| 6 | Module power | 5V6A 30W | ||||

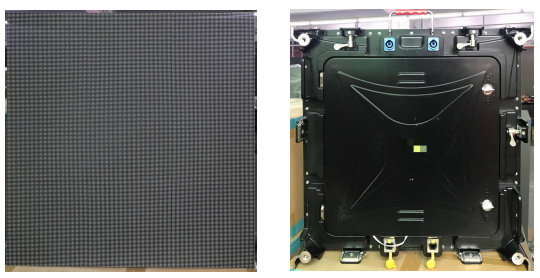

| Cabinet Specification | ||||||
| 1 | Cabinet Size(WXHXD) | 576mmL*576mmH*95mmD |
|
|||
| 2 | Cabinet Resolution | 192x192 pixels | ||||
| 3 | Module Quanity | 9 pcs | ||||
| 4 | Cabinet Pixels | 36864 | ||||
| 5 | Pixel Density | 111111 dots/m2 | ||||
| 6 | Average Power Consumption | 100W/cabinet | ||||
| 7 | Max. Power Consumption | 300W/cabinet | ||||
| 8 | Material | Alumium | ||||
| 9 | Cabinet Weight | 10KG | ||||
| 10 | Protective Grade | IP65 | ||||
| Screen Parameters | ||||||
| 1 | Whole screen size | 1.152mx1.152m |
|
|||
| 2 | LED Display Resolution | 384 * 384 | ||||

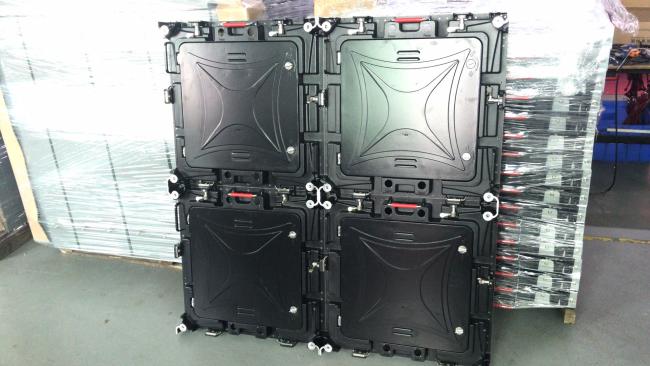

| 3 | Cabinet quantity | 4pcs | ||||
| 4 | Brightness | ≥6500 mcd/㎡ | ||||
| 5 | Brightness(Max./Min.) | 1.2:1 | ||||
| 6 | Driving Method | 1/16 Scan | ||||
| 7 | View Angle | Horizontal 140° Vertical 120° | ||||
| 8 | Optimal Viewing Distance | 5M | ||||
| 9 | Brightness Control | Red,Green and Blue 256 Grade/Each | ||||
| 10 | Refresh rate | >1920HZ | ||||
| 11 | Frame Frequency | 60Hz | ||||
| 12 | Input Voltage | AC220V/50Hz or AC110V/60Hz | ||||
| 13 | Defects Rate | ≤0.00001 | ||||
| 14 | Power Consumption | Max.: 800W/㎡ Average: 300W/㎡ |
||||
| 15 | Screen weight | ≤35kg/㎡ | ||||
| 16 | MTBF | >10,000 hours | ||||
| 17 | Life span | ≥100,000 hours | ||||
| 18 | Module Display Brightness Uniformity | <2% | ||||
| 19 | Earth Leakage Current | <3mA | ||||
| 20 | Protective Grade | IP65 | ||||
| 21 | Temperature-operating | ﹣25℃～45℃ | ||||
| 22 | Humidity-operating | 10%～95% | ||||
| 23 | Controlling system | HD-Player Wifi | ||||
| 24 | Operating System | WIN7/WIN8/WIN10 | ||||
| Remarks: | ||||||
| 1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free. |
||||||
