860-960MHz High Gain 10dBic RFID Narrow Beam Antenna, Circular Polarization RFID Gate Reader Antenna for Portal
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
5-7 work days
Brand:
Broadradio
Product Description
Features
1. BRA-16 antenna has superior mechanical properties
2. Terminal applications with directional characteristics, narrow beam, high gain, etc.
3. It has convenient applications in access control, personnel management, asset management and other applications.
4. The narrow beam design of the antenna effectively solves the problems of misreading, crosstalk, etc.
Performance Specifications
| Frequency Range | 860MHz～960MHz |
| VSWR | ≤1.3:1 |
| Gain | 10 dBic |
| Polarization |
Circular Polarization |
|
Axial ratio |
<3 dB |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type |
SMA-50KFD Female |
Mechanical Specifications
| Size |
460 mm×220 mm×44 mm |
| Weight | 1.65kg |
| Material |
ABS plastic, aluminum |
| Color | White |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |
Figure 1. Antenna Picture

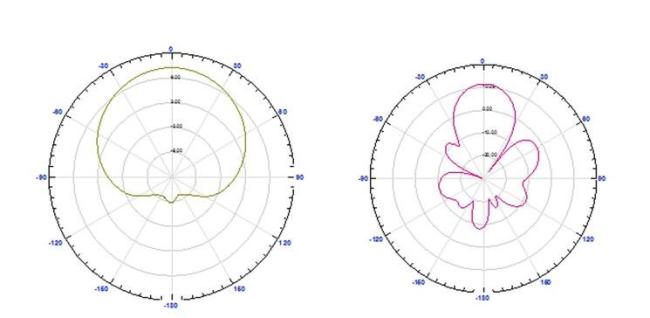

Figure 2. Antenna Radiation Pattern
Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China. Base, more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
