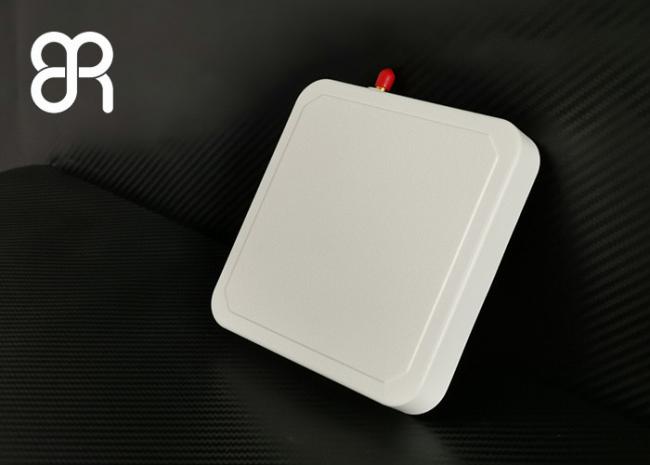

SMA-50KFD Female High Gain Rfid Antenna , IP67 Uhf Near Field Antenna 6dBic
BRA-02SR 6 dBic Circular Polarization UHF RFID Antenna,with small size SMA-50KFD Female
Provide custom design services
Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.
Product Features
1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
2)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
3)BRA-02SR Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
Performance Specifications
| Frequency Range | 902MHz～928MHz(865MHz～868MHz) |
| VSWR | ≤1.3:1 |
| Gain | > 6 dBic |
| H side HPBW | 105° |
| E side HPBW | 105° |
| Polarization | Circular Polarization |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | SMA-50KFD Female |
The main test capabilities
Antenna gain
Antenna directivity
Beamwidth
Antenna efficiency
Radiated power
Label sensitivity
Label performance
