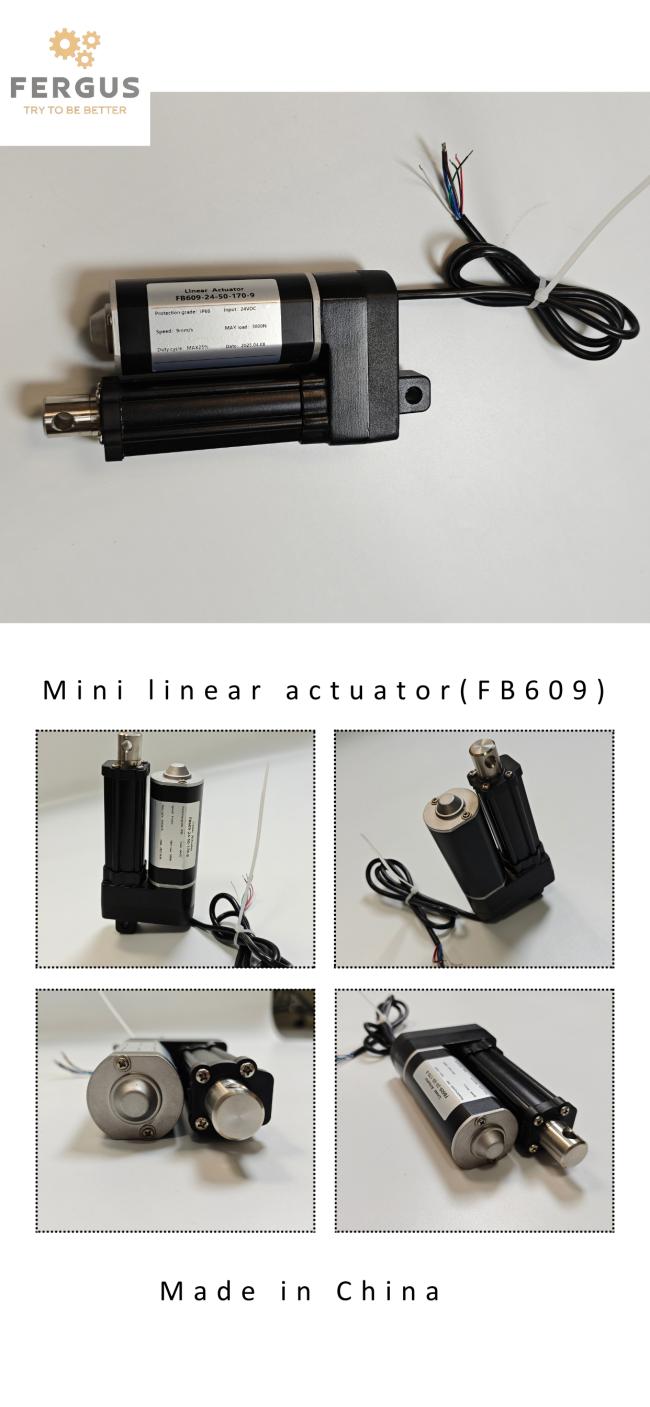

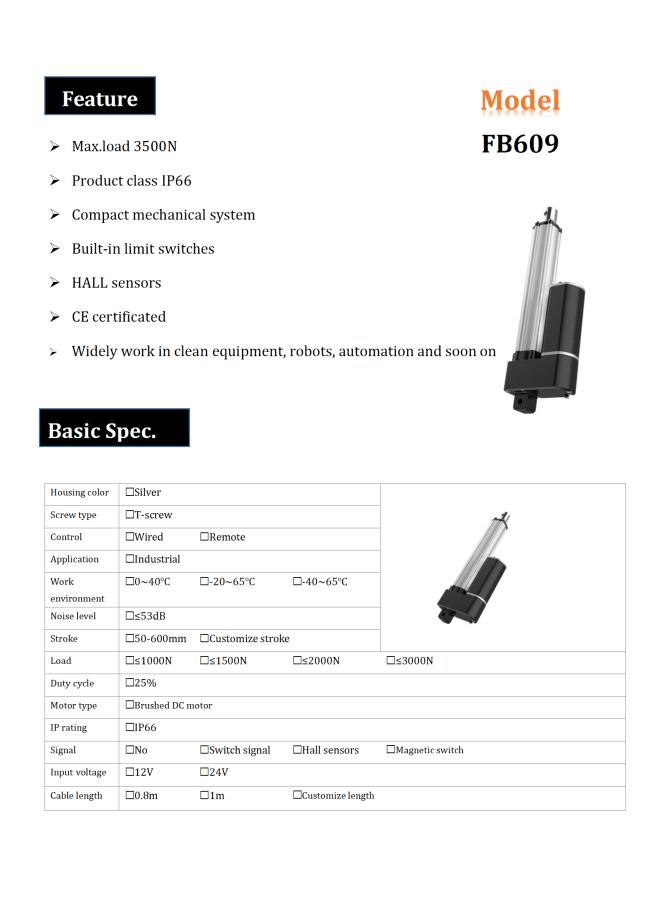

Electric linear actuator 150mm stroke 3000N, low noise linear actuators IP66

Price Negotiable

Price: Check with us

MOQ: 1pc

Delivery Time: 10 work days after receive payment

Brand: FB

Product Description

You can find out what each digit in a standard IP code means in the IP ratings table below.

By using this ingress protection chart, you can determine what hazards and scenarios a given item's mechanical or electrical components should be protected from.

You can also see how the protection applies to each environment.

First Digit: Protection from Foreign Body and Particulate Ingress

First Digit	Level of Protection
0	(or X - see section below): Not rated (or no rating supplied) for protection against ingress of this type
1	Protection against solid objects larger than 50mm (accidental hand contact with open palm), but not against deliberate body contact
2	Protection against solid objects larger than 12mm (accidental finger contact)
3	Protection against solid objects larger than 2.5mm (tools and wires)
4	Protection against solid objects larger than 1mm (fine tools and wires, nails, screws, larger insects and other potentially invasive small objects)
5	Partial protection against dust and other particulates, such that any ingress will not damage or impede the satisfactory performance of internal components
6	Full protection against dust and other particulates, including a vacuum seal, tested against continuous airflow
