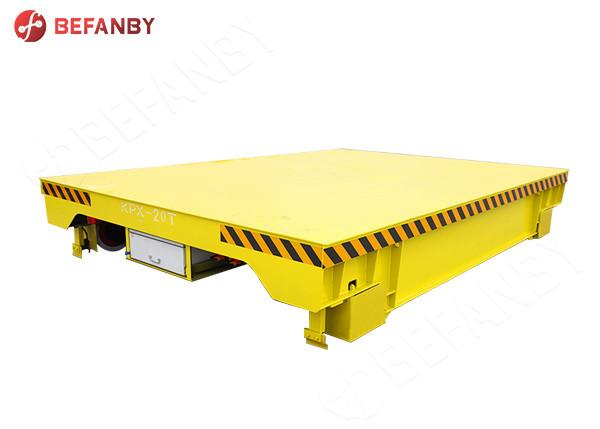

Rail Mounted Battery Powered Goods Transfer Trolley
Rail Mounted Battery Powered Goods Transfer Trolley
If the workshop only uses cranes for transportation operations, there are greater risks and higher requirements for operators. In order to ensure safety and work efficiency, rail transfer trolleys have been developed and put on the market.
The transporting parts are loaded onto the rail transfer trolley by crane and then operated by remote control, so that the rail transfer trolley can carry out handling operations along the required route. If the workpiece is relatively special type, a support frame can benstalled on the transfer trolley table. In addition, the rail transfer trolley comes with a safety inspecting device, which will automatically stop when the transfer trolley encounters pedestrians or obstacles, which is safe and reliable.
Advantages
- Flexible and environmental;
- It can run on S rail, arc-shape rails and stright rails.
- Unlimitedrunning running distance;
- Free provide rail construction drawing and rail installation drawing;

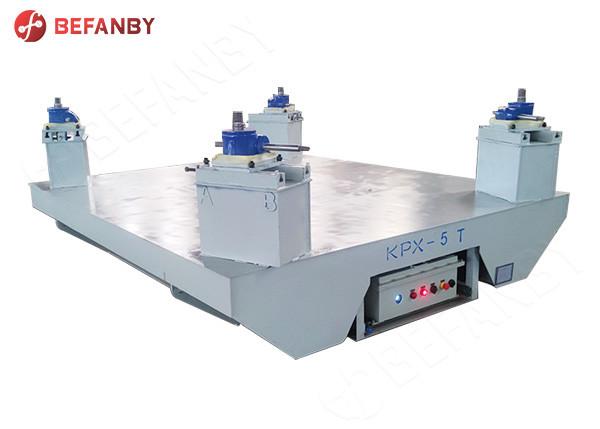

- The hydraulic lifting device, V-frame, power roller can be installed on the platform;
- Customized from 1 ton to 1500 tons;
- Safe device is installed, including sound & light alarm, Sensor stop, E-stop, Buffer, etc.
|
Model
|
KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer trolley in China, meanwhile we also design material handling solution according to client's demand
Welcome to contact us for more maeterial handling solution
