Warehouse Intelligent AGV Omnidirectional Electric Mover

Price Negotiable

Price: Negotiation

MOQ: 1 set/sets

Delivery Time: 40-50 days as usual delivery,30-40days for urgent delivery

Brand: BEFANBY

Product Description

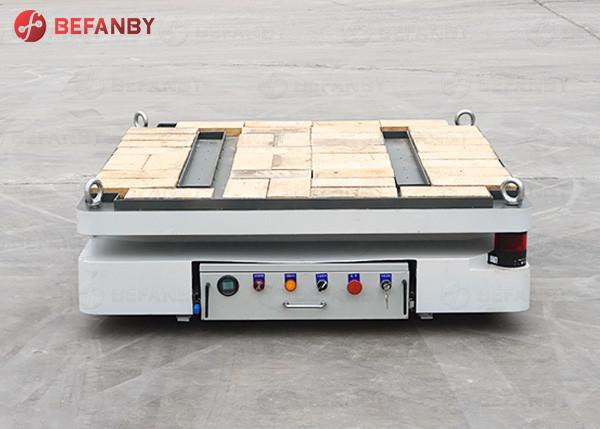

Warehouse Intelligent AGV Omnidirectional Electric Mover

Product Description Of Warehouse Intelligent AGV Omnidirectional Electric Mover

AGV is an intelligent transportation mover that moves in all directions. It can flexibly transport items within the warehouse and has powerful navigation functions. From the perspectives of safety and efficiency, AGV intelligent mover can bring many benefits to enterprises.

Firstly, the AGV intelligent mover does not require manual driving, which will reduce the potential risk of accidents and also reduce the workload of employees. Especially in warehouses with complex environments and winding production lines, safety becomes even more crucial.

Secondly, AGV intelligent mover have flexibility. It adopts modern navigation and control technology, which can automatically transport items according to user needs. This means that as long as the goods in the warehouse are placed according to the planned path, the AGV intelligent mover can automatically complete the transportation work, greatly saving time and costs.
Finally, AGV intelligent vehicles can be integrated into the enterprise's AI system for more intelligent control, thereby further improving the level of intelligence. In the future, this technology will play an important role in the warehousing and logistics industry and promote enterprises to improve transportation efficiency.

In the warehousing and logistics industry, traditional transportation tools of the past will be replaced by more intelligent and efficient AGV intelligent mover. New intelligent solutions are driving industry evolution, bringing faster and safer modes of transportation.

Application Of Warehouse Intelligent AGV Omnidirectional Electric Mover

Parts Details

Product Parameter

Model		AGV-2T	AGV-5T	AGV-10T	AGV-20T	AGV-30T	AGV-40T	AGV-50T
Rated load(t)		2	5	10	20	30	40	50
Table Size	Length(mm)	2000	2500	3000	3500	4000	5000	5500
	Widthmm)	1500	2000	2000	2200	2200	2200	2500
	Heigth(mm)	450	550	600	800	1000	1200	1300
Wheel Base(mm)		1080	1650	1650	1650	1650	2000	2000
Wheel Dia.(mm)		Φ200	Φ280	Φ350	Φ410	Φ500	Φ500	Φ550
Battery Voltage(V)		48	48	48	72	72	72	72
Weel Quantity(pcs)		4	4	4	4	4	4	4
Ground Clearance(mm)		50	50	50	50	50	50	50
Max Wheel load(KN)		14.4	25.8	42.6	77.7	110.4	142.8	174
Reference Wight(t)		2.3	3.6	4.2	5.9	6.8	7.6	8
