Electrical Trackless Flatbed Die Transfer Cart

Price Negotiable

Price: Negotiation

MOQ: 1 set/sets

Delivery Time: 30-40 days as usual delivery,20-30days for urgent delivery

Brand: BEFANBY

Product Description

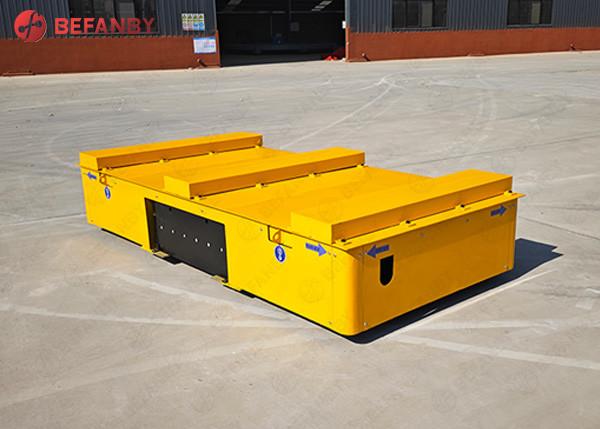

Electrical Trackless Flatbed Die Transfer Cart

Product Description

The electrical trackless flatbed die transfer cart is a modern and efficient way of transporting heavy materials in manufacturing plants. It effectively solves the problem of manual transportation and reduces labor costs. This type of cart is equipped with an electrical motor and can move forward and reverse without the need for tracks, which makes it highly versatile and flexible.

This innovation is a testament to the continuous improvement of technology in the manufacturing industry. The electrical trackless flatbed die transfer cart has greatly improved the efficiency of material handling and has decreased the occurrence of accidents caused by manual transportation. This is a positive development that benefits both workers and employers.

In addition, this type of cart is also environmentally friendly. It does not emit harmful pollutants or consume fossil fuels, making it a more sustainable and responsible option for industrial transportation.

The electrical trackless flatbed die transfer cart is an excellent solution for manufacturers who are seeking to improve production efficiency, reduce labor costs, and promote environmental responsibility. Overall, this innovation is a positive development that contributes to the advancement of the manufacturing industry.

Application

Product Details

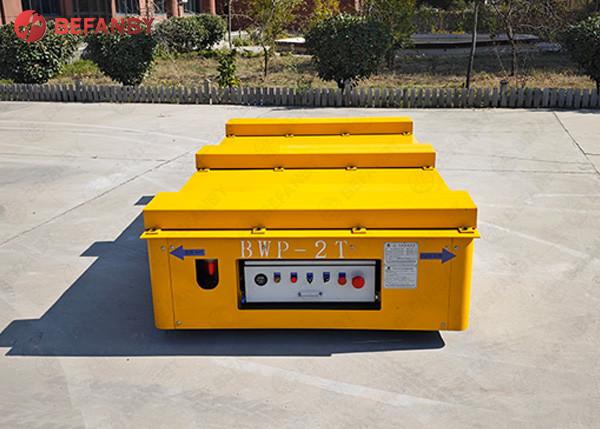

Electrical Trackless Flatbed Die transport Cart

Product Parameter

Model		BWP-2T	BWP-5T	BWP-10T	BWP-15T	BWP-20T	BWP-25T	BWP-30T	BWP-40T	BWP-50T	BWP-60T	BWP-70T	BWP-80T	BWP-100
Rated load(t)		2	5	10	15	20	25	30	40	50	60	70	80	100
Table Size	Length(L)	2000	2200	2300	2400	2400	3500	3500	5000	5500	5600	6000	6500	6600
	Width(W)	1500	2000	2000	2100	2200	2200	2200	2500	2600	2500	2600	2800	3000
	Heigth(H)	450	500	550	600	600	700	700	800	800	850	900	950	1200
Wheel Base(mm)		1080	1650	1650	1600	1650	1650	1650	2000	2000	1800	1850	1950	2000
Axle Base(mm)		1380	1680	1700	1830	1850	2700	2700	3600	2850	2900	3500	3500	4000
Wheel Dia.(mm)		Φ250	Φ300	Φ350	Φ400	Φ400	Φ450	Φ450	Φ500	Φ600	Φ600	Φ600	Φ600	Φ600
Wheel Quantity(pcs)		4	4	4	4	4	4	4	4	4	4	6	6	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed(mm)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power(kw)		2*1.2	2*1.5	2*2.2	2*3.5	2*4.5	2*5.5	2*5.5	2*6.3	2*7.5	2*10	2*12	30	40
Batter Capacity(Ah)		250	180	250	330	400	400	450	440	500	600	600	800	1000
Battery Voltage(V)		24	48	48	48	48	48	48	72	72	72	72	72	72
Running Time When Full Load		2.5	2.88	2.8	2.3	2.2	1.8	2	2.6	2.5	2.2	1.8	2	1.9
Running Distance for One Charge(Km)		3	3.5	3.4	2.8	2.7	2.2	2.4	3.2	3	2.7	2.2	2.4	2.3
Max Wheel load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	152	185	190
Reference Wight(t)		2.3	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8
