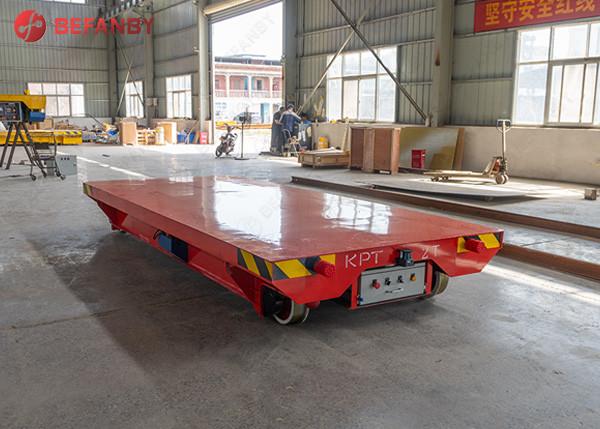

Large Duty Electrical Pipe Factory Railway Transfer Carts
Large Duty Electrical Pipe Factory Railway Transfer Carts
Brief Introduction Of Rail Railway Transfer Cart
The drag chain rail electric transfer cart is an efficient, safe and convenient logistics handling equipment. The equipment is mainly composed of a car body, a drag chain, a power system and a control system. It has a simple structure and is easy to operate. The drag chain rail electric transfer cart can be customized according to demand and can meet the logistics needs of different occasions.
The drag chain rail electric transfer cart is widely used in industrial production, mechanical processing, logistics distribution and other fields, especially in heavy-load transportation, which is more labor-saving and more efficient than traditional hand-pushed transfer carts.
The equipment also has the advantages of high safety and strong stability. The use of safety measures such as overload automatic parking and emergency stop protection effectively avoids the risk of accidents during the handling process.
In general, the drag chain rail electric transfer cart is a high-performance handling equipment that can help enterprises improve handling efficiency and reduce labor costs. In the future development, it will be used in more and more fields and make important contributions to the production efficiency and competitiveness of enterprises.
Parts Of Railway Transfer Cart
Advantage
Technique Parameter Of Manufacture Customized Transfer Cart
| Model | KPT-2t | KPT-5t | KPT-10t | KPT-16t | KPT-20t | KPT-25t | KPT-30t | KPT-40t | KPT-50t | KPT-63t | KPT-80t | KPT-100t | KPT-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | 800 | 850 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 2.3 | 3.3 | 3.8 | 5 | 5.5 | 6 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
