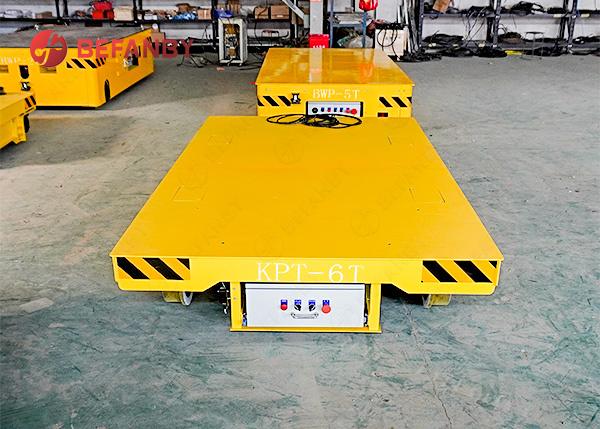

Stable Mobile Reel Rail Transfer Cart With Intelligent Control
This product is a 6-ton capacity rail-mounted transfer cart powered by a trailing cable system. The power supply moves in tandem with the cart, ensuring a continuous and stable flow of electricity. It is ideally suited for high-frequency transport operations over short to medium distances. Featuring a robust structure and smooth operation, the cart is versatile enough for a wide range of industrial applications, effectively boosting workshop transport efficiency while reducing manual handling costs.
Welcome to inquiry us if you'd like to learn more
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
To accommodate the varying operational preferences of different clients, the equipment offers two control modes: remote control and handle control. Operators can switch between these modes based on on-site conditions; remote control allows for operation from a distance to enhance safety, while handle control enables precise maneuvering—such as starting, stopping, and moving the vehicle forward or backward—thereby increasing flexibility, ease of use, and on-site transport efficiency.
In addition to standard configurations, the transport vehicle supports a wide range of custom specifications. Whether regarding vehicle dimensions, platform structure, load capacity, and travel speed, or features such as hydraulic lifting, roller conveyors, safety guardrails, and positioning devices, the equipment can be designed and manufactured to meet specific on-site requirements. This ensures a truly tailored approach, delivering highly efficient and reliable material handling solutions for diverse production lines.
