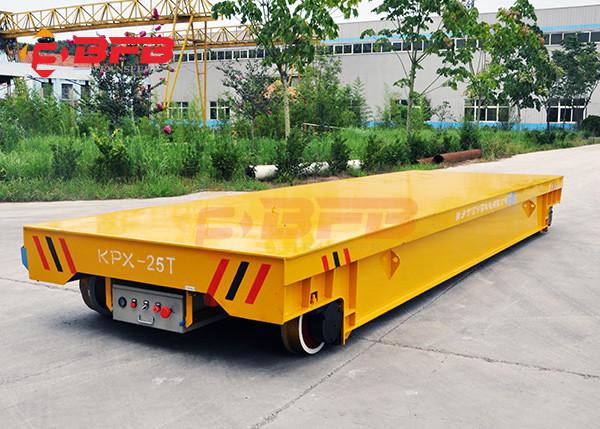

20t Capacity Large Bearing Steel Industry Warehouse Work Battery Transfer Cart For Material Handling
This 20t Capacity Large Bearing Steel Industry Warehouse Work Battery Transfer Cart For Material Handling is usually used at ship yard, plant and factory, certain production line. The transfer cart could get power from the battery. The battery is installed inside the battery powered transfer cart. The battery powered transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities.The battery powered transfer cart construction is based on our world renowned battery powered transfer cart and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. BEFANBY battery powered transfer cart is available in a number of configurations specifically designed to suit the needs of our customers.
battery powered transfer cart maintenance charge ship yard fork trucks speed 25
battery powered transfer cart maintenance charge ship yard fork trucks speed 25
- Simple structure
- Anti-explosion
- Anti-high temperature
- Customization can be supported
- Safe devices are installed
- China professional manufacture
- Low noise
- Easy Operation
- Environmental
- Long lifetime
- Stable start
- Big starting power
- Small impact to the geer reducer
- Low voltage
- Free Maintenance
- Charge 750 times, reduce 1/3 lifetime
| Model | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 80 | 100 | 150 | |
| Table size | Length(L) | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 800 | 900 | 1200 | |
| Wheel Base | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 1.2 | 2 | 3 | 3.5 | 4 | 5 | 6.3 | 10 | 15 | 15 | |
| Battery Capacity | 180 | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 440 | 600 | |
| Battery Voltage | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3.6 | 3.2 | 2.9 | |
| Max Wheel Load | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P18 | P18 | P24 | P38 | P38 | P43 | P43 | P50 | QU100 | QU100 | |
battery powered transfer cart maintenance charge ship yard fork trucks speed 25
| Product Name | Model No. | Power Supply Mode | Load Capacity | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-500ton, can be customized per client demand | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | ||
| Busbar Powered Handling Cart | KPC | Busbar | ||
| Towed Rail Trailer | KP | Tractor | 1-500t, customized | |
| Steerable Towed Car | BWT | Tractor | Load range 1-500t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | |
| Trackless Handling Machine | BWP | Battery |
- Our commitment:
- The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
- 16 hours engineering service and 24 hours internet service for our customers
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
battery powered transfer cart maintenance charge ship yard fork trucks speed 25
