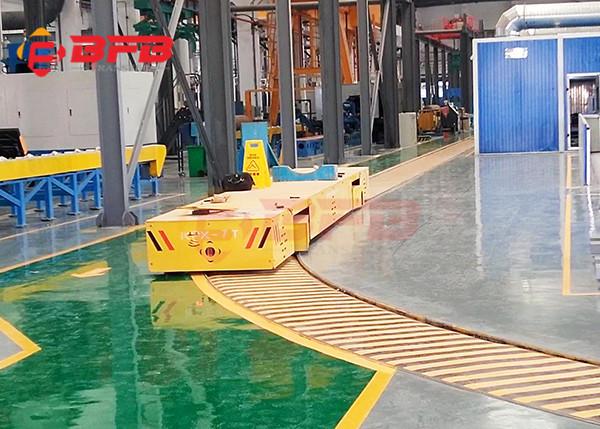

Heat Resistance Rail Transfer Trolley , Heavy Steel Motorized Rail Transfer Cart

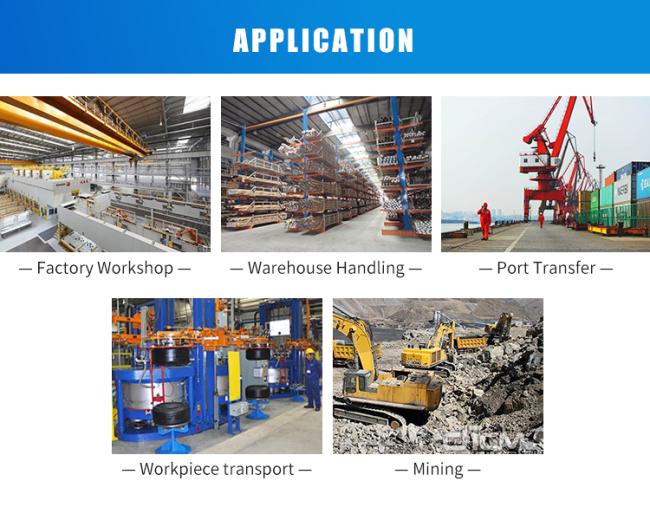

Heat Resistance Rail Transfer Trolley , Heavy Steel Motorized Rail Transfer Cart provide dependable, efficient transfer of loads for a diverse array of applications ranging from aluminum anodizing, paper roll storage, general manufacturing and can be customized to suit. This rail guided transfer cart can reduce labor costs, optimize manufacturing processes and reduce capital costs associated with forklift systems. The end result is increased production and throughput.
roll storage steering mechanism trolleys on wheels aluminum anodizing roll storage steering mechanism trolleys on wheels aluminum anodizing

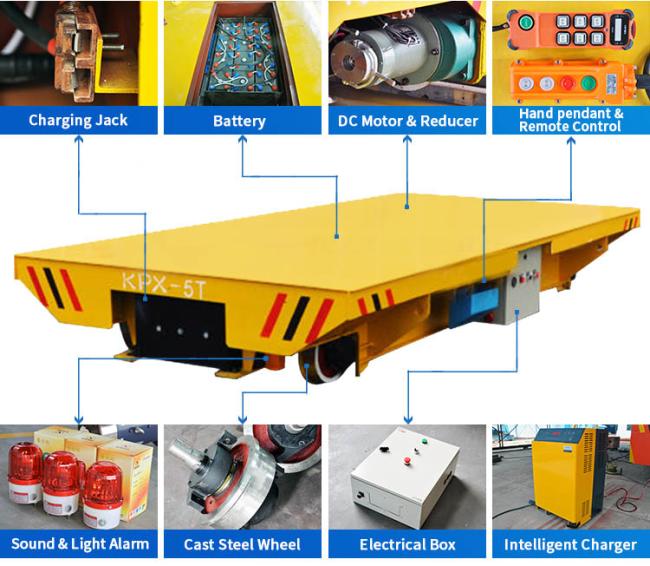

2.Product Advantages---Heat Resistance Rail Transfer Trolley , Heavy Steel Motorized Rail Transfer Cart
1) The Heat Resistance Rail Transfer Trolley , Heavy Steel Motorized Rail Transfer Cart doesn't need have any steering function since they equipped with steel wheels and move just on railways, which can make the transfer cart keep straight running.
roll storage steering mechanism trolleys on wheels aluminum anodizing
2) The rail transfer trolley represent the superior design for production cycles which are regular or frequent both time-wise and route-wise.
roll storage steering mechanism trolleys on wheels aluminum anodizing
3) As they have steel wheels and run on fixed steel rails they are suited for very high loading capacities owing to the very low friction between steel and steel.
roll storage steering mechanism trolleys on wheels aluminum anodizing
4) For all the reason, the cost of the rail guided transfer cart - referring to same dimensions and same loading capacity - is lower than the motorized battery trolleys on wheels which needed to equip with steering mechanism and greater powers.
roll storage steering mechanism trolleys on wheels aluminum anodizing
5)BEFANBY company, with its 16 years experience in this kind of rail trolley, offers handling with state-of and the-art technologies, on account of continuous design improvement by insistingon most up-to-date electronic innovations.
roll storage steering mechanism trolleys on wheels aluminum anodizing
| Model | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Wheel Diameter | 300 | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 1.2 | 2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 180 | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Product Name | Model No. | Power Supply Mode | Load Capacity | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-500ton, can be customized per client demand | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | ||
| Busbar Powered Handling Cart | KPC | Busbar | ||
| Towed Rail Trailer | KP | Tractor | 1-500t | |
| Steerable Towed Car | BWT | Tractor | Load range 1-500t | |
| Trackless Handling Machine | BWP | Battery |
1)Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
2)What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
