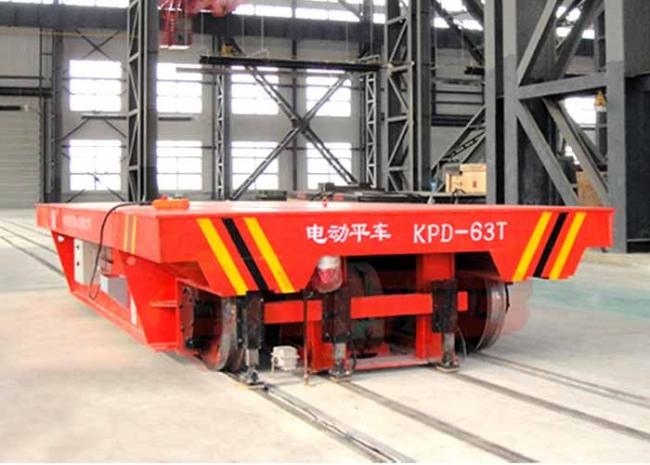

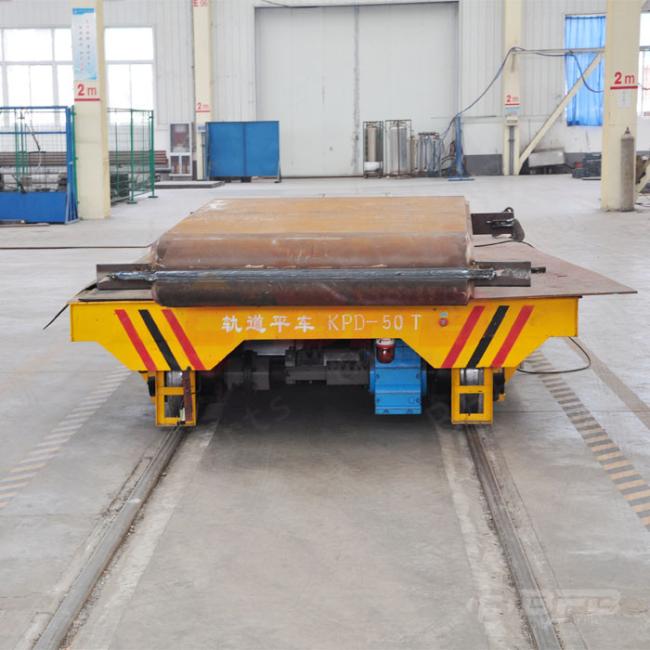

Aluminum factory bay to bay handling electric flat rail transport trailer
KPDZ type rail transport trailer is powered from 36v two-phase rails. It is two-phase electricity on rails. the transport trailer’s wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the trailer. And then the AC 36v is transfer into DC 36v and then control the DC motor through the DC control system to make transfer cart start,stop,forward, and backward,etc.
The voltage of operating system is 36v safe voltage. After the transformer step-down from 380v AC three-phase, the rails got the electricity.
Description of aluminum factory rail trailer

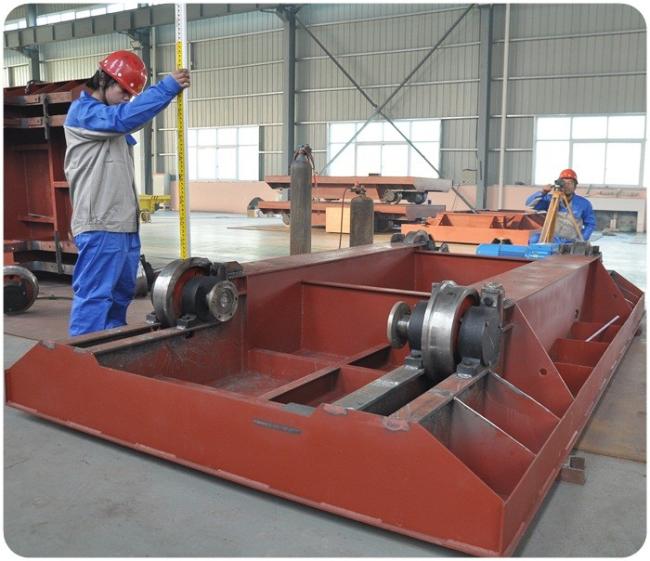

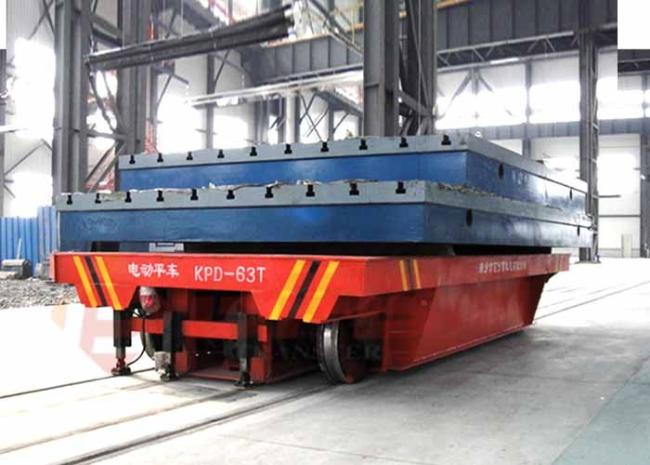

The frame of rail trailer is welded by high quality steel, with the assistant of running mechanism , gears, AC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.
The rail transport trailer is composed of motor, reducer, electric appliance box and wheels. Due to more parts, compared with other carts, it has large size. But it can’t influence its working property.

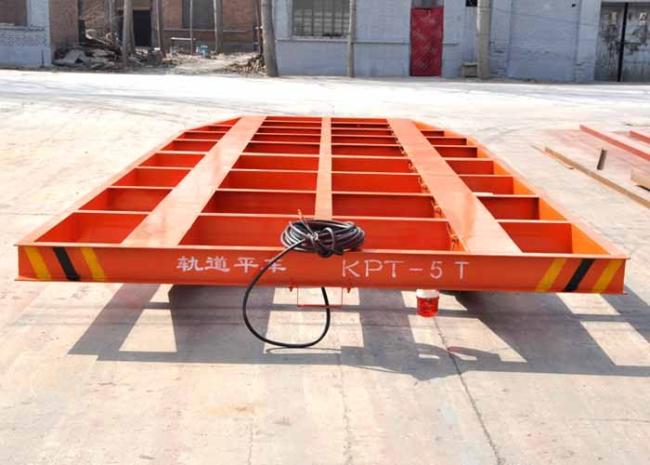

Frame Driving system Steel wheel
Reducer Light & sound alarm Bumper
Functions of electruc flat rail transport trailer
- Go forward and backward,
- Turn left and right,
- Adjust speed button,
- Indicator light,
- Electric indicator light and other control buttons.
- Anti-collide
Advantages of bay to bay handling electric flat rail transport trailer
- Has no lit on using time and high working frequency;
- Can be used in high-temperature environment;
- Can be used in explosion-proof environment;
- Safety and flexibility;
- Large toad capacity, can reach to 300tons;
- Box grider structure is designed to make it not easy deformation
- All can be customized as per your demand

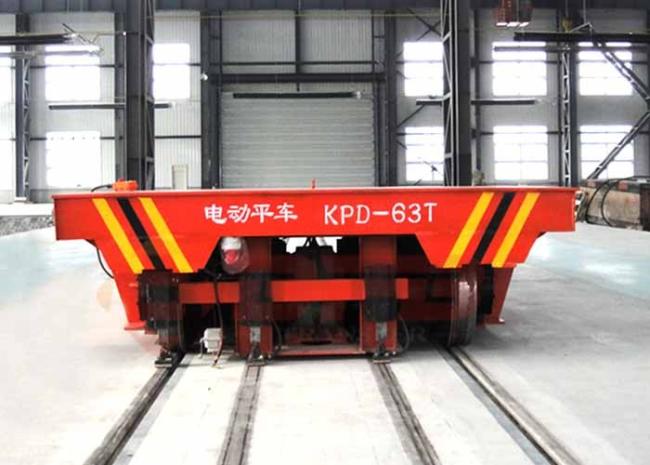

Due to large load capacity, the rail transport trailer is powered through 3 rails.

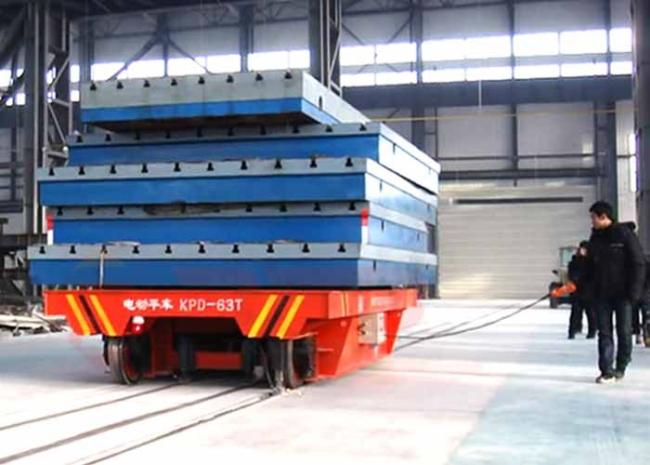

The rail transporter trailer is applied in workshop to transfer heavy materials bay to bay. The rails should be insulated.
This kind of rail transport trailer can also be applied on turning rails, arc-shaped rails.
Technical parameters of rail transport trailer
| Model | KPDZ-2t | KPDZ-20t | KPDZ-50t | KPDZ-100t | KPDZ-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 30 | 30 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

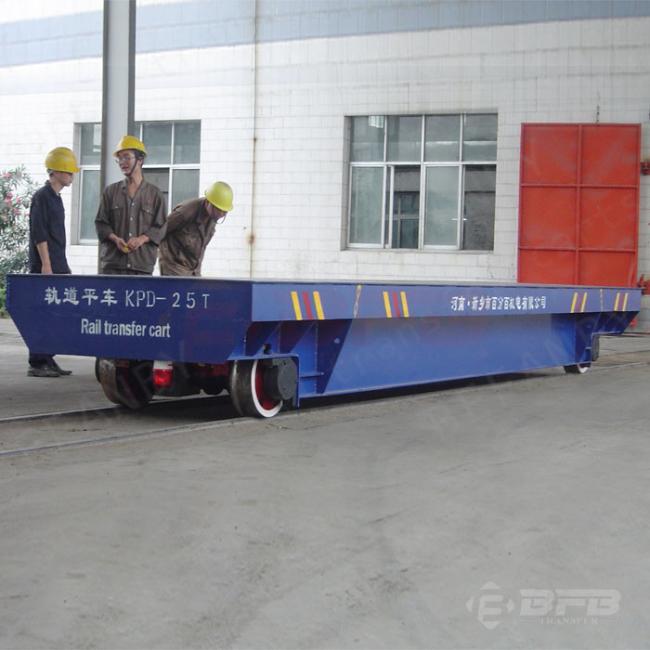

Delivery of rail transport trailer
Other product of BEFANBY company

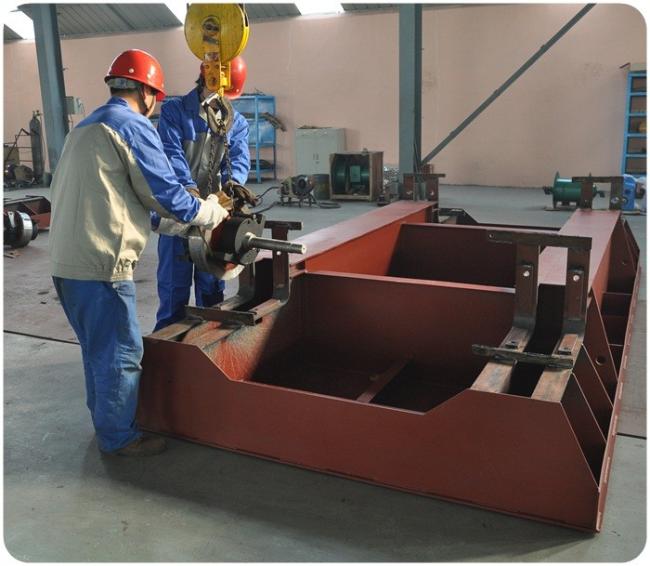

Our company
Our certificate
FAQ
- Q: What is the capacity of the rail transport trailer? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.
2. Q: What is the using candition?
A: The environment temperature should be in level. such as production line
3. Q: What is the working speed of the rail transport trailer?
A: The standard running speed is 0-20m/min.
