KPJ series electric flat car is powered by cable drum.The power source 380V alternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the rail wagon. The electric flar car can realize full automatic operation by PLC system.
Detailed description of winch towed rail electric flat car
This kind of electric flat car is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.

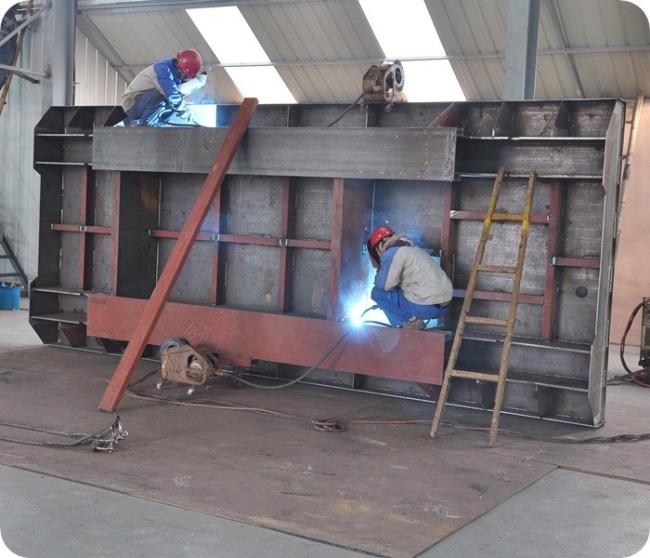

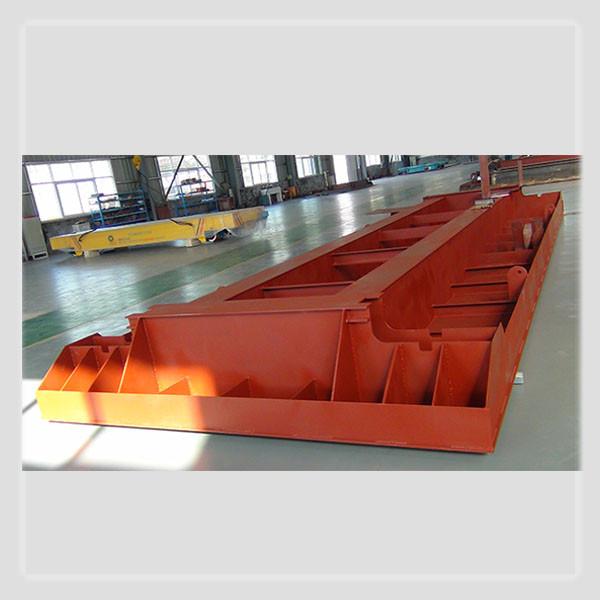

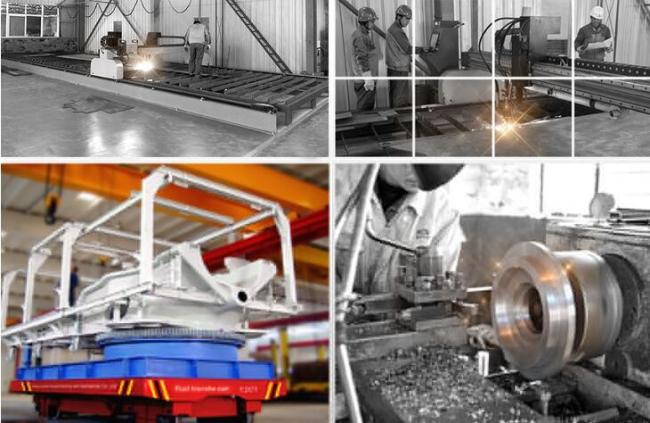

The whole cart frame adopts crane box girder structure. It has advantages of no easy deformation, large bearing ability.

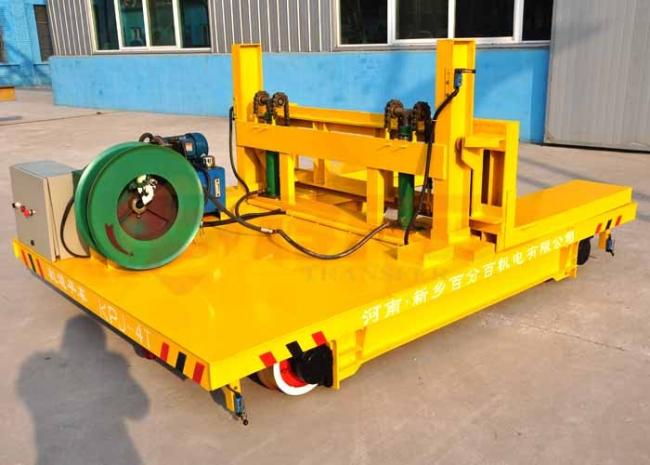

The main parts of the winch towed rail electric flat car includes Cable drum, driving system, box girder frame, electric appliance, etc.

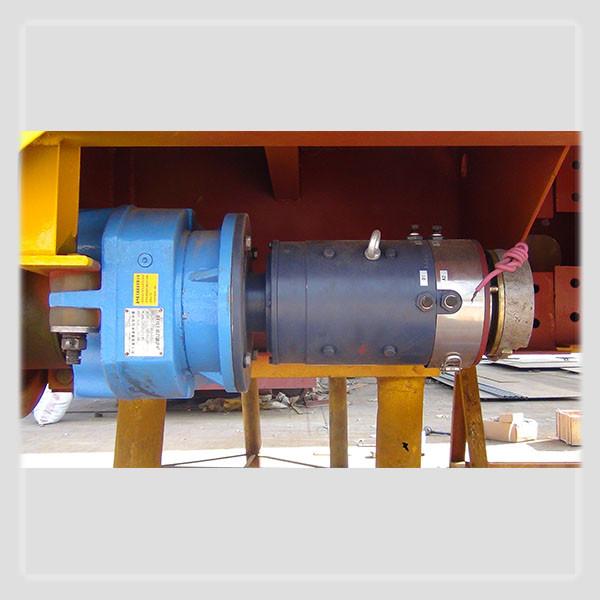

Frame Driving system Cable drum
Features of winch towed rail electric flat car
- Anti-explosion,Anti-high temperature;
- Powered by cable;
- With lifting holes, convenient to shipment;
- Stable start, big starting power, long lifetime;
- Simple structure, low cost ;
- Running distance is limited;
- Safe and convenient operation ;
- High using frequency ;
- Unlimited load capacity
- Can be add hydraulic lifting device;
- Can be add dumping device;
- High efficiency, low energy consumption;
Technical parameters of winch towed rail electric flat car
|
Model
|
KPJ-2T | KPJ-10T | KPJ-20T | KPJ-30T | KPJ-50T | KPJ-63T | KPJ-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |

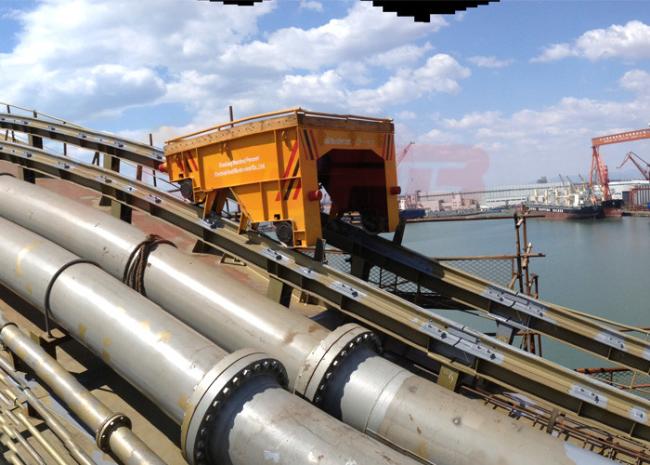

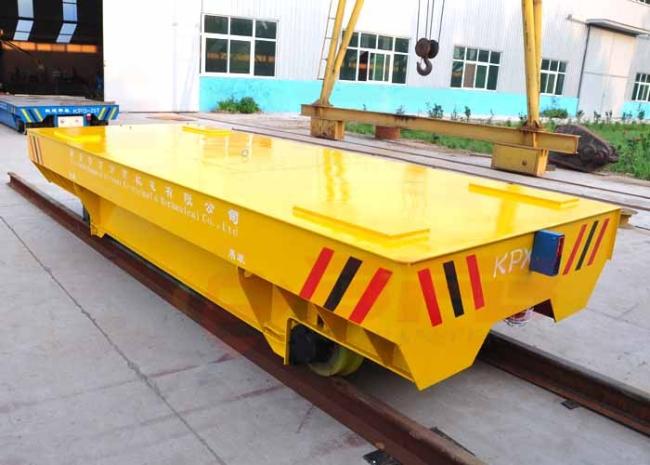

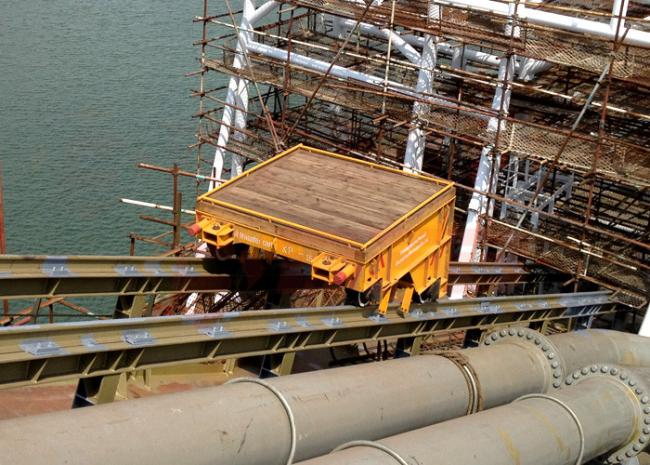

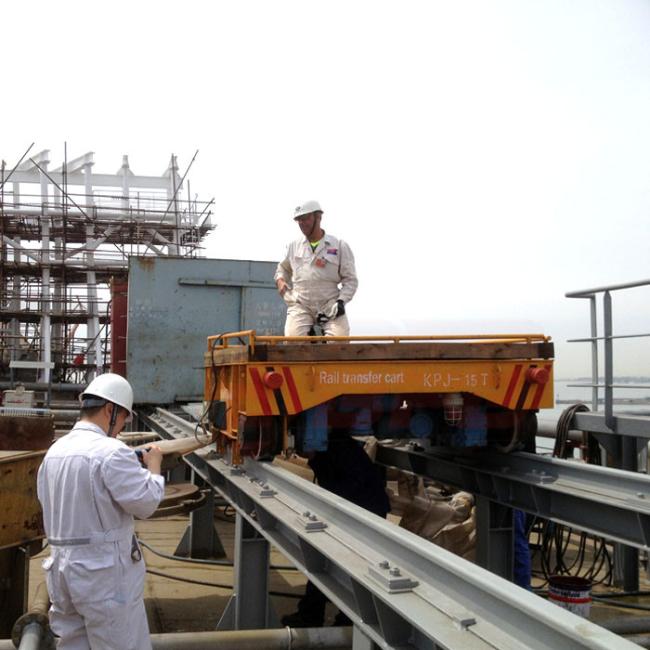

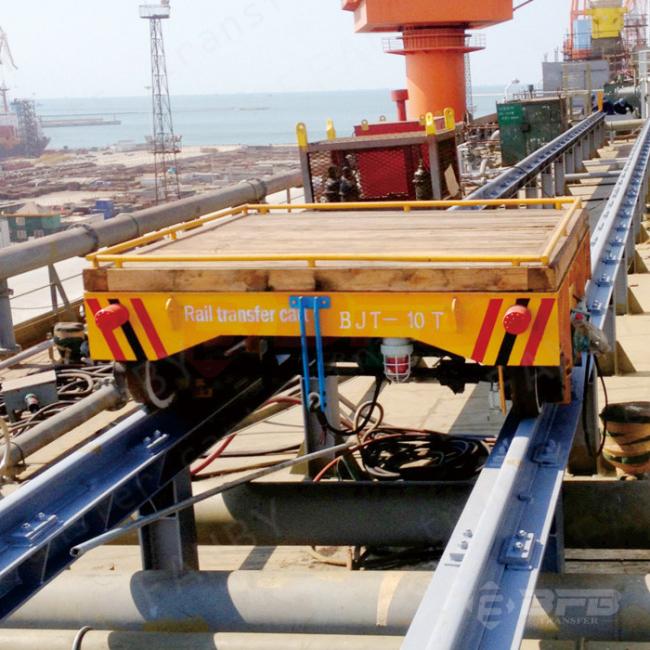

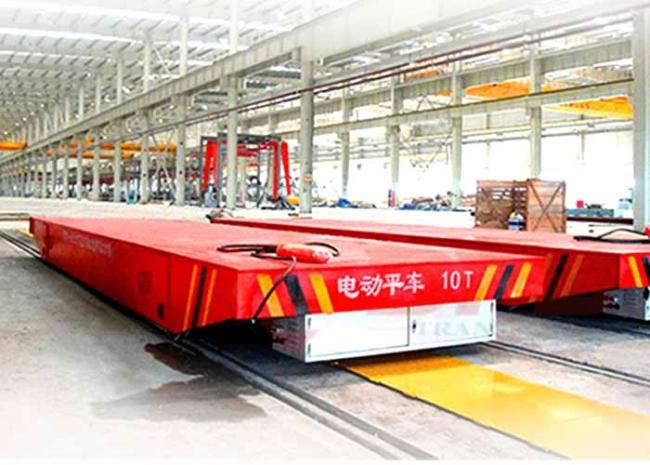

This kind of electric flat car is running on steel tracks or steel squre bars.It is commonly applied in shipyard, seaside to transferring ship parts or ship maintenance machine.
For the winched towed electric flat car is running on tracks on slope, so the wagon is special design. It can meets the working environment and improve the working efficiency.
The electric flat car is also applied in the following working station:
- Carry loads along assembly lines;
- transfer material from one work station to the next;
- store and transport an entire shift worth of production.
- They can even be used as a stable yet moveable machine base.
