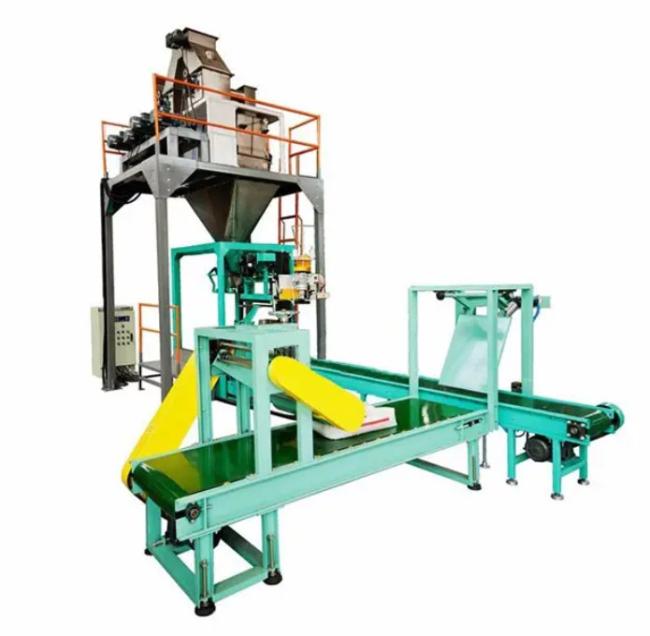

5kg To 50kg Rice Grains Bag Weighing Packing And Palletizing Machine Line

1. General introduction:

Open Mouth Bagging Machine is a dedicated equipment for automation production mainly to realize automatic packaging (automatic bag pickup, bag feed, bag delivery, bag opening, filling and bag sealing) and output of finished product. Open Mouth Bagging Machine totally adopts PLC man-machine interface display screen control, which significantly facilitates operation, so, it is the requisite equipment for automated enterprise production.

Technical parameters:

•  Main Equipments composition

Features:

The perfect structure for bagging systems

The high-speed design of the Open Mouth Bagging Machine facilitates re-bagging and improves weighing accuracy

The Open Mouth Bagging Machine has a large capacity to save time and labor costs in the future

PE film bag or paper bag inside PP bag, good sealing performance

Open Mouth Bagging Machine Famous electrical parts brand with excellent programmed bagging system

Dual vacuum pumps provide continuous compressed air for stable operation

Adjustable conveyor specially designed for bagged product conveying

2. Characteristics:

2.1 Applicable to the packaging bags of the same specification, if the packaging bag needs to be changed, please make adjustment as per the operation requirements;

2.2 The Open Mouth Bagging Machine adopts rational design, bag suction, bag opening, filling and sealing are completed automatically;

2.3 This machine adopt PLC + man-machine interface display screen control with high performance, high speed and high efficiency;

2.4 Bag Weighing Packing And Palletizing Machine is structurally compact and has nice appearance;

1.2.5 This system is suitable for various packaging materials such as paper bag, woven bag (without coated film), plastic bag, etc., and is widely applied in chemical, forage and grain sectors, etc.

3. service environment:

It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).

• Functions and Characteristics:
• High degree of automation, Manually only need to put empty bags into the automatic empty bag feeder, empty pallets into the pallet magazine, all other processes are automatically completed by the equipments. The specific automation processes is as follows:

Automatic empty bag feeding;

Automatic weighing and filling;

Automatic valve mouth sealing;

Automatic filled bag unloading;

Automatic conveying;

Automatic metal detection;

Automatic weight check;

Automatic rejection;

Automatic filled bag shaping;

Automatic palletizing;

Automatic stack exit.

It is also possible to adopt a combination of three automatic packers and a automatic empty bag feeder to increase capacity.

Perfect dedustinging system ensures that no dust escapes to pollute the environment during packaging.
