Heavy Wall Oil Well Downhole Pumps With Spraying Ni60A Plunger
Oil Well Downhole Pumps With Spraying Ni60A Plunger
Spraying Ni60A plunger oil downhole pump description:
1. Rod downhole pump: Also referred to as “ insert pump” as it is installed inside the tubing it is not necessary to run and pull the tubing out of the well when checking pump. It can enter the tubing with the sucker rod and set, which can greatly reduce the operation cost. According to the setting mode, it is divided into a cup setting and a mechanical setting, and is divided into top support and bottom support according to the support position.
2. Tubing downhole pump: The barrel is run into the well with tubing, and the plunger is run into the barrel with sucker rod. The bore of the tubing pump is generally larger, so the effect of oil extraction is good, and the output is large for high-yield wells.
RW thin wall pump technical specifications:
| RW Model | Pump OD (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
| 30-250RWAM | Ø63.5 | 2.1-10 | 0.3-8.0 | 1.2-9.0 | / | 3-1/2” |
| 30-250RWBM | ||||||
| 30-250RWAC | Ø63.5 | 3-1/2" | ||||
| 30-250RWBC |
Features:
1. Strict Quality Control System
2. Prompt Delivery Time

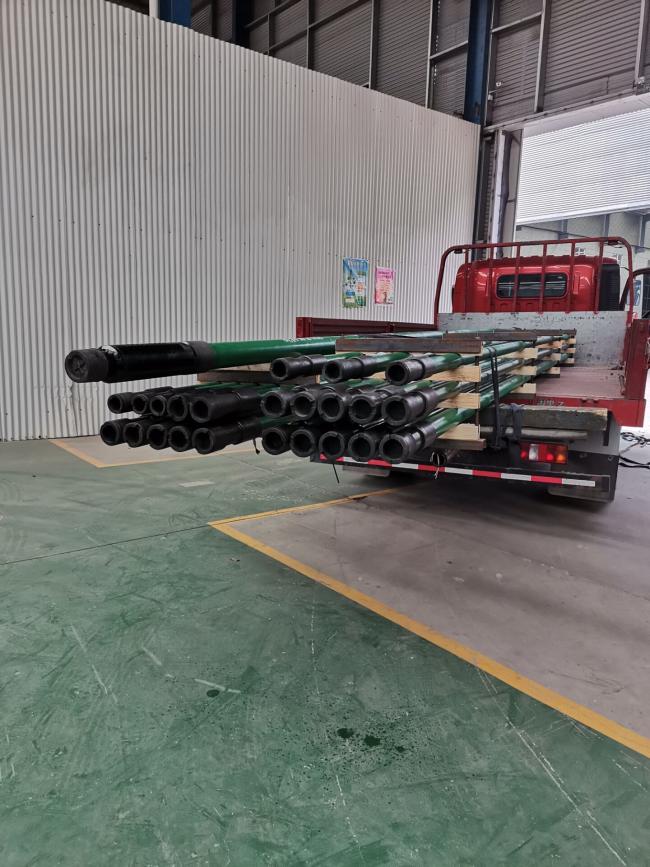

Delivery photo:
