Seamless Type Well Pump Tubing THM Oil Field Sucker Rod
Price:
Negotiable
MOQ:
1 set
Delivery Time:
10~15 workdays
Brand:
Zhongshi
Product Description
Seamless Type Well Pump Tubing THM Oil Field Sucker Rod
tubing pump means that its standing valve is directly connected to the barrel and it cannot be pulled up separately with the barrel. The THC or THMtype of tubing pump means that its standing valve can be pulled up separately with the barrel. The seating assembly of THC pump is cup type and for THM is mechanical type. The THC and THM type of tubing pump are suitable for the frequently work-over wells.
THM pumptechnical parameters table:
| THM model | Pump OD (in) | Length of barrel(ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) | Sucker rod size |
| 20/25-106THM | Ø26.99 | ≦6 |
0.3-8.0 |
1.2-9.0 |
0.6-1.2 |
2-3/8”
2-7/8” |
CYB16
CYB19
CYB25 |
| 20/25-125THM | Ø31.75 | 2.1-10.4 | |||||
| 20/25-150THM | Ø38.10 | ||||||
| 20-175THM | Ø44.45 | ||||||
| 25-200THM | Ø50.80 | ||||||
| 25-225THM | Ø57.15 | ||||||
| 30-275THM | Ø69.85 | 3-1/2” | |||||
| 40-375THM | Ø95.25 | 4-1/2” |

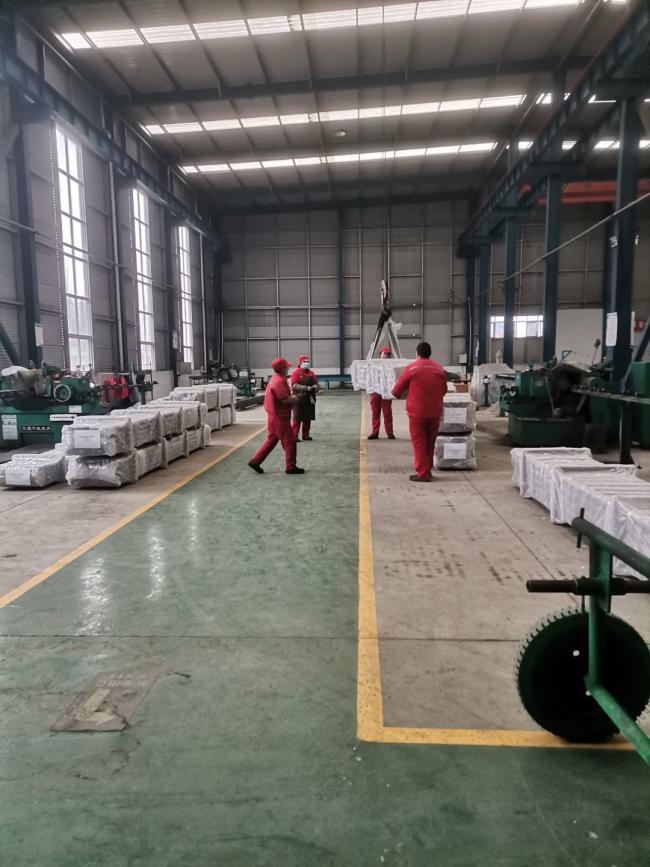

Photo for tubing pump delivery:
