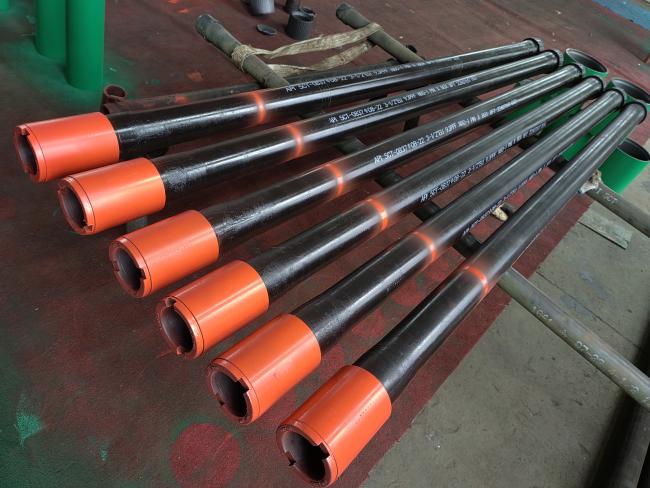

API 5CT Standard Alloy Steel Tubing / Casing Pup Joint For Oilfield
Product Description:
The OCTG pup joint is a pipe that can be cut to different lengths to meet the desired value. Orchid Energy Co could provide API standard casing and tubing pup joints which are manufactured according to API Spec 5CT with different grade of seamless tubing according to the clients requirement.
Benefits & Features
1. Standard: API 5CT/ISO11960/GOST;
2. Grade: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, C95,Q125;
3. Length: 2ft,3ft,4ft,6ft,8ft,10ft,12ft(with other length available upon request);
4. OD of Tubing joint: from 2 3/8” to 4 1/2”.Pipe End: EUE/NUE;
5. OD of Casing joint: from 4 1/2” to 20”. Threads: BTC,LTC,STC;
Technical Parameter:
| Diameters: | 1.9" through 4.5" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request) |
| Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 |
| Connections: | EUE, NUE, Buttress |
|
Size |
Type of Thread |
O.D*L (mm) |
Weight(kg) |
|---|---|---|---|
| 2-3/8" | NUE | 73.02*107.95 | 1.28 |
| 2-3/8" | EUE | 77.80*132.82 | 1.55 |
| 2-7/8" | NUE | 88.90*130.18 | 2.34 |
| 2-7/8" | EUE | 93.17*133.35 | 2.40 |
| 3-1/2" | NUE | 107.95*142.88 | 3.71 |
| 3-1/2" | EUE | 114.30*146.05 | 4.10 |
| 4" | NUE | 120.65*146.05 | 4.35 |
| 4" | EUE | 127.00*152.40 | 4.82 |
| 4-1/2" | NUE | 132.08*155.58 | 4.89 |
| 4-1/2" | EUE | 141.30*158.75 | 6.05 |
