API 11B Alloy Steel Sucker / Pony / Drive Rod For Oilfield 3/4"

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2weeks

Brand: Zhongshi

Product Description

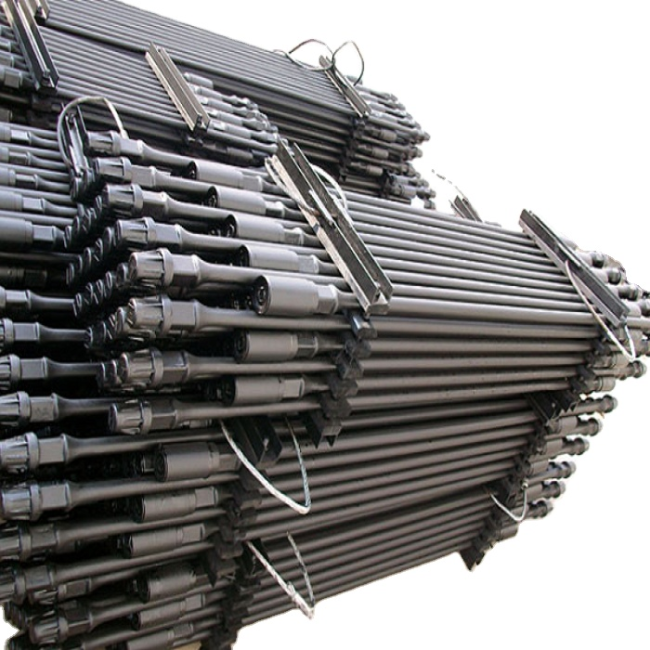

Sucker Rod Introduction:

The sucker rod is a steel rod that used to make up the mechanical assembly between the surface and downhole components of a rod pumping system.
The product conforms to API Specification 11B (Oil extraction rod Standard) and other related standard, authorized to use the API monogram.

The special process could ensure the high precision of the
thread with better reliability and life-span.

Size in (mm)	Rod Body diameter in (mm)	diameter of ext. thread in (mm)	Full size Coupling OD mm (in)	Coupling OD mm (in)	Wrench square W*L mm (in)	Length series m (ft)
5/8 (16)	5/8 (15.88)	15/16 (23.81)	38.10(1.5)	31.8 (1.25)	22.2×31.8 (7/8×1-1/4)	7.62 (25)
3/4 (19)	3/4 (19.05)	1-1/16(26.99)	41.28(1.625)	38.1 (1.5)	25.4×31.8 (1×1-1/4)	9.14 (30)
7/8 (22)	7/8 (22.23)	1-3/16 (30.16)	46.0(1.812)	41.3 (1.625)	25.4×31.8 (1×1-1/4)	0.6 (2), 1 (3)
1 (25)	1 (25.40)	1-3/8 (34.93)	55.6(2.187)	50.8 (2)	33.3×38.1(1-5/16×1-1/2)	2 (6), 3 (10)
1-1/8 (28)	1-1/8 (28.58)	1-9/16 (39.7)	60.33(2.375)	57.2 (2.25)	38.1×41.3 (1-1/2×1-5/8)

Mechanical Properties of Sucker Rods:

Grade	Min Yield strength 0.2% offset M Pa (psi)	Tensile strength M Pa (psi)	Elongation δ%	Reduction of area ψ%
K	414 (60, 000)	621-793(90, 000-115, 000)	≥13	≥60
C	414 (60, 000)	621-793(90, 000-115, 000)	≥13	≥50
D	586 (84, 970)	793-965 (114, 985-139, 925)	≥10	≥50
KD	590(85, 000)	793-965 (114, 985-139, 925)	≥10	≥50
HL	795(115,000)	965-1,195(140,000-173,339)	≥10	≥45
HY	540 (78, 300)	965-1,195(140,000-173,339)	≥42	≥224
