Oilfield tubing pump description:
The pump barrel assembly (including the pump barrel and extension adapters) is screwed directly on the bottom end of the tubing. The pump has the following advantages:
1. A larger tubing pump can be used for the tubing with the same size, making it suitable for the well with large production capacity.
2.The sturdy pump structure and larger flow passage allow thick crude oil.
3.Due to the limit of the sucker rod strength and elasticity, it is usually applicable to large displacement shallow wells and deep wells but not in gassy wells and ultra deep wells.
Downhole pump specification table:
| 1 | 2 | 3 | 4 | 5 | ||
|
Type of Pump
|
Letter Designation | |||||
| Metal Plunger Pumps | Soft-Packed Plunger Pumps | |||||
|
Heavy-Wall Barrel |
Thin-Wall Barrel |
Heavy-Wall Barrel |
Thin-Wall Barrel |
|||
| Rod Pumps | ||||||
| Stationary Barrel, Top Anchor | RHA | RWA | RSA | |||
| Stationary Barrel, Bottom Anchor | RHB | RWB | RSB | |||
| Stationary Barrel, Bottom Anchor | RHT | RWT | RST | |||
| Tubing Pumps | TH | -- | TP |
-- |
||

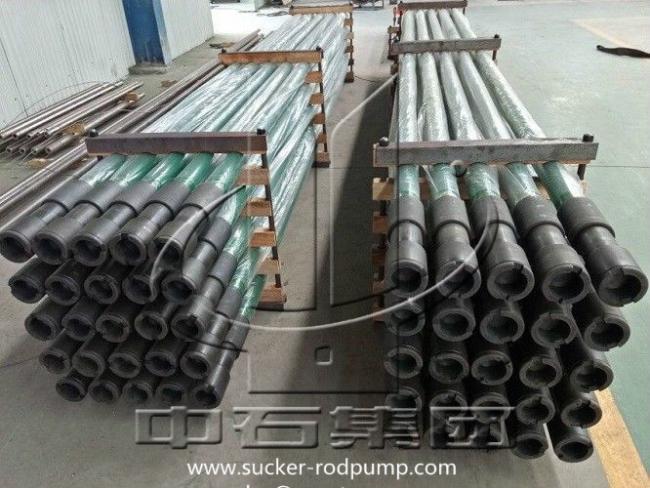

Tubing pump packing photo:
