Petroleum Machinery Sucker Rod Pump With Chromium Molybdenum Alloy Steel Material

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 10~15 workdays

Brand: Zhongshi

Product Description

Petroleum Machinery Sucker Rod Pump With Chromium Molybdenum Alloy Steel Material

Product description

The down process of the tubular pump is: the pump is lowered to the predetermined depth with the tubing, and the plunger is connected to the sucker rod up and down into the pump cylinder. In the case of the same tubing size, the tubular pump that can be installed is larger than the rod pump. The tubular pump has a simple structure and is suitable for oil wells with low pump depth and high output.

Features

The pump barrel is machined by using the high quality special purpose blank; the internal surface has the chrome-plating or the nickel phosphorus compound plating to achieve the good intensity, the rigidity, wear-resistance and anti-corrosion.

Technical Specifications

Model	Nominal diameter mm(in)	The length of the plunger m(ft)	stroke m	Connect the tubing The screw thread	The connection of Sucker rod in
20-125TH	32(1.25)	1.2—1.8 (4—6)	0.6—7.3	23/8NU/EU	3/4
25-125TH	32(1.25)		0.6—7.3	27/8NU/EU	3/4
20-150TH	38(1.50)		0.6—7.3	23/8NU/EU	3/4
25-150TH	38(1.50)		0.6—7.3	27/8NU/EU	3/4
20-175TH	44(1.75)		0.6—7.3	23/8NU/EU	3/4
25-175TH	44(1.75)		0.6—7.3	27/8NU/EU	3/4
25-225TH	57(2.25)		0.6—7.3	27/8NU/EU	3/4
30-275TH	70(2.75)		0.6—7.3	31/2NU/EU	7/8
35-325TH	83(3.25)		0.6—7.3	4NU/EU	7/8
40-375TH	95(3.75)		0.6—7.3	41/2NU/EU	1

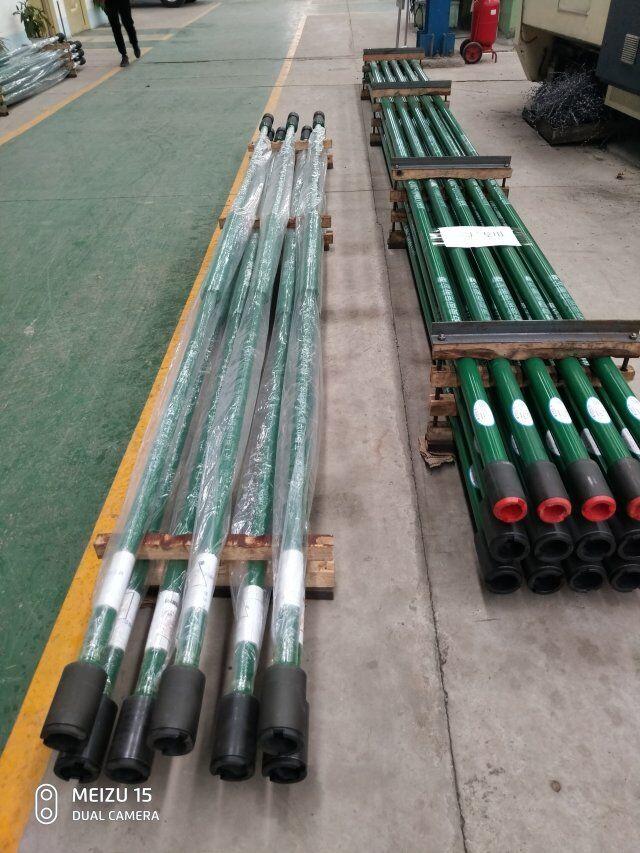

Pictures
