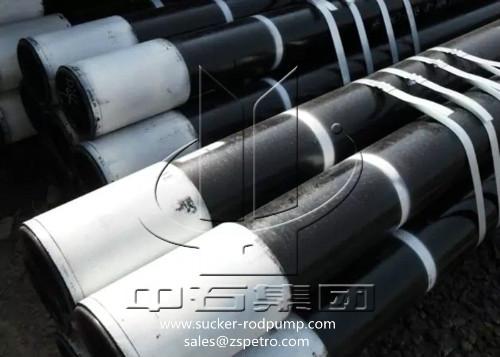

P110 13Cr C9513Cr Oilfield Tubing Pipe For Corrosive Drilling Environment
P11013Cr L8013Cr Special Steel Oilfield Tubing Pipe For Corrosive Drilling Enviroment
Description for 13Cr tubing pipe:
1.13Cr alloy steel oil tubing pipe can be applied to oil and gas well production that contain carbon dioxide
and chlorine ion acidic medium.
2.This kind of tubing pipe not only has high strength and excellent corrosion resistant properties, but also
has good low temperature toughness.
Features:
1. CO2 resistant oil pipe
2. Seawater corrosion resistant oil pipe
Technical specification:
| Product Name | OCTG |
| Technique | Hot Rolled |
| Standard | API 5CT |
| Surface | Varnish |
|
API 5CT tubing: Materials: H40,J55,K55,N80-1,N80-Q,L80-1,L80-9Cr,L80-13Cr,C90,C95,T95,P110,P110-13Cr, Q125 Outside Diameter: 26.67-114.3mm(1.9" -- 4-1/2") Wall thickness: 2.87-16mm Type of ends: NUE,EUE, Length:6-14m; R2, also can be manufactured according to customers’ requirements. |
|
Mechanical properties:
| Steel Grade | Yield Strength Ksi(Mpa) |
Mild tensile Ksi(Mpa) |
Elongation | hardness (HRC) | |
| Min | Max | Min | Max | ||
| L80-13cr | 80 (552) | 95 (655) | 95 (655) | API5CT | 23 |
| C95-SP13Cr1 C95-SP13Cr2 |
95 (655) | 110 (758) | 110 (724) | 30 | |
| p110-Sp13Cr1 p110-Sp13Cr2 |
110 (758) | 140 (965) | 125 (862) | 33 | |
