Premium Alloy Steel Oil Casing Pipe Steel Well Casing Pipe High Strength
Price:
Negotiable
MOQ:
1 metric ton
Delivery Time:
Negotiable
Brand:
Zhongshi
Product Description

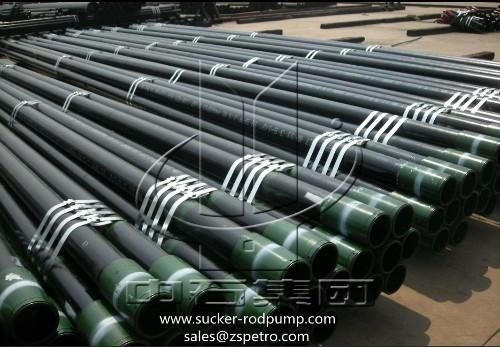

P110 Oil Production Tubing 3 1/2 Inch R2 Length Packed By Packing Frame
Description of oil tubing:
Tubing is used for transporting crude oil and natural gas from oil or gas layer to the surface,so this pipe
Description of oil tubing:
Tubing is used for transporting crude oil and natural gas from oil or gas layer to the surface,so this pipe
can bear the pressure generated from the extraction process. The steel grade for oil tubing has
J55, K55, N80, L80 and P110 etc.
Features:
1. Seamless tubing with steel grade P110
2. Certified by API 5CT
Dimensions:
Features:
1. Seamless tubing with steel grade P110
2. Certified by API 5CT
Dimensions:
|
Size Designation |
Weight Designation Lb/ft | Outside Diameter | Wall Thickness | |||
|
Nonupset T&C |
Ex-upset | In. | mm | In. | mm | |
| 2 3/8" | 4.00~7.35 | 4.70~7.45 | 2.375 | 60.33 | 0.167~0.336 | 4.24~8.53 |
| 2 7/8" | 6.40~11.50 | 6.50~9.45 | 2.875 | 73.03 | 0.217~0.440 | 5.51~11.18 |
| 3 1/2" | 7.70~17.00 | 9.30~12.95 | 3.5 | 88.9 | 0.216~0.530 | 5.49~13.46 |
| 4" | 9.50~22.20 | 11 | 4 | 101.6 | 0.226~0.610 | 5.74~15.49 |
| 4 1/2" | 12.60~26.10 | 12.75 | 4.5 | 114.3 | 0.271~0.630 | 6.88~16.00 |
Mechanical Properties:
| Standard | Steel grade | Tensil Strength(Mpa) | Yeild Strength(Mpa) | Elongation(%) |
| API 5CT | J55 | ≥517 | 379~552 | 0.5% |
| API 5CT | K55 | ≥655 | 379~552 | 0.5% |
| API 5CT | N80 | ≥689 | 552~758 | 0.5% |
| API 5CT | L80 | ≥655 | 552~655 | 0.5% |
| API 5CT | P110 | ≥862 | 758~965 | 0.6% |
