Forging Casing Reamer Shoe / Casing Float Shoe Drilling Tool For Oil Well
Price:
Negotiable
MOQ:
1
Delivery Time:
depends on quantity
Brand:
Puyang Zhongshi Group
Product Description

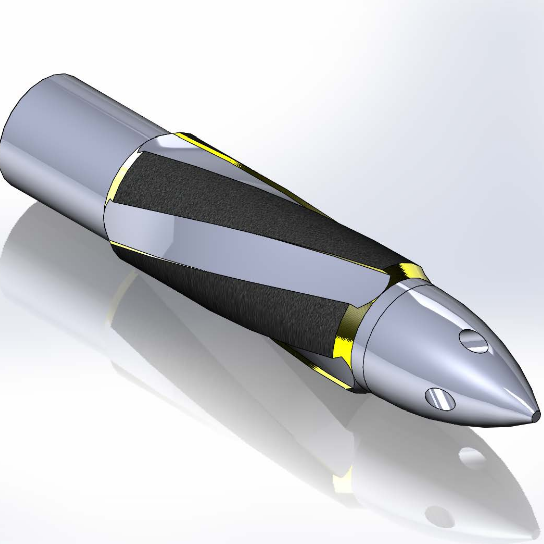

Drilling Tool API reamer shoe for oil well
Reamer shoe system is a casing shoe that overcomes welbore obstructions to guide casing or liners to total depth (TD). The eccentric guide nose climbs ledges and negotiates obstructions while the cutting structure reams out tight spots or obstruction in the wellbore.
Features
- API Standard Casing Reamer Shoe
- Tough durable profiled cement nose
- Fitted with High flow phenolic float valve tested in excess of API test procedures
- 5,000 & 10,000psi Valves Available
- Double Valve Option Available
- Autofill Option Available
- New and Improved cementing process for valve retention
- Cement tested to 5000 & 10,000psi
Specification
| Spec. (mm) | O.D. (mm) | Length (mm) | Thread Connection |
| 127 | 141.3 | 445 | API Casing Thread |
| 139.7 | 153.7 | 460 | API Casing Thread |
| 177.8 | 194.5 | 500 | API Casing Thread |
| 244.5 | 269.9 | 560 | API Casing Thread |
