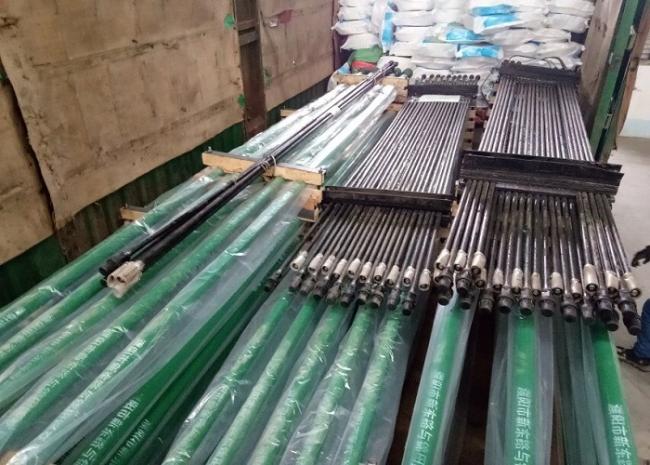

20Ft Length Sucker Rod Pump With Spray Metal Plunger P22-225 Chrome Barrel B13-225
20Ft Length Sucker Rod Pump With Spray Metal Plunger P22-225 Chrome Barrel B13-225
Product Description
Rod pump is equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.
Technical Specifications
| Type | Major technical data | |||||
| Diameter(mm) | Barrel Length (m) | Stroke Range (m) | Length of Extension Pub Joint(m) | Thread for Tubing(in) | Connecting sucker rod | |
| Rod pumps | 31.8 |
2.1 3.0 3.3 3.6 3.9 4.2 4.5 4.8 5.7 6.0 6.6 7.3 9.1 |
1.5-6 | 0.3 0.6 0.9 |
2 3/8 | CYG16 |
| 38.1 | 2 7/8 | CYG19 | ||||
| 44.45 | 2 7/8 | CYG19 | ||||
| Tubing pump |
31.8 | 1.5-7.8 |
0.3 0.6 0.9 |
2 3/8 | CYG16 | |
| 38.1 | 2 7/8 | CYG16 | ||||
| 44.45 | 2 7/8 | CYG16 | ||||
| 57.15 | 2 7/8 | CYG19 | ||||
| 69.85 | 2 7/8 3 1/2 | CYG22 | ||||
| 82.55 | 3 1/2 | CYG25 | ||||
| 95.25 | 3 1/2 | CYG25 | ||||
Features
It is suitable for corrosion and small amount of sand and gas, deep Wells, such as complex well conditions, the use of safe, stable performance and wide application.
Under operation easy to operate, economical and practical, it can reduce oil field operation cost by more than 30%.
It can be designed according to the customer’s well.
Operating principle of tubing pumps:
The pump barrel assembly directly fixed on a tubing string. the plunger assembly connected on the sucker rod string ,and with the up and down reciprocating motion, so as to realize the production process. Its advantage lies in: in the process of oil production, when the traveling valve and fixed valve side problem,valve side can be proposed by the sucker rod, piston and extractor , don’t put the whole pump and tubing string out of the well, reduce the work intensity and the operation cost
