Oilfield Slip On Welded Type Cement Basket Carbon Steel Material With Flexible Bow Springs
Price:
Negotiable
MOQ:
1
Delivery Time:
depends on quantity
Brand:
Puyang Zhongshi Group
Product Description

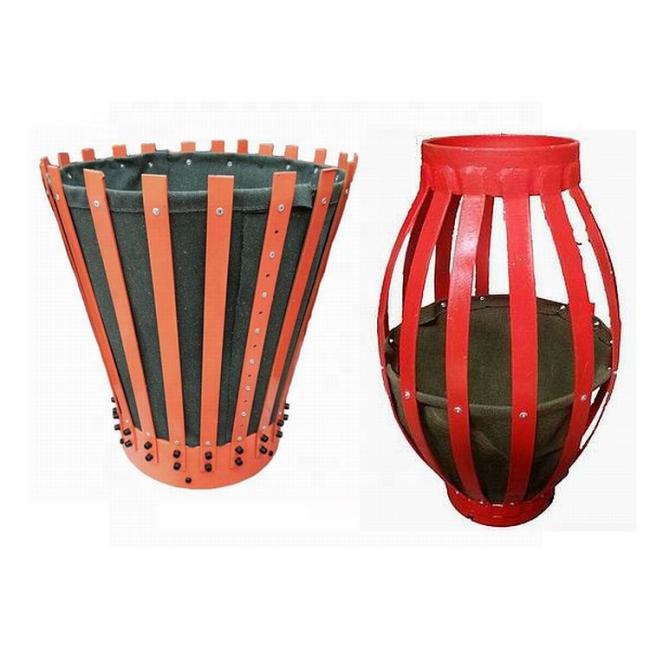

Oilfield Slip on Welded Type Cement Basket
Cement Basket is an effective aid in retaining and supporting the cement where weak formations and stage cementing is encountered. , , are welded to slip-on collars and overlapping metal fins
Features
- It is designed with Flexible Bow Springs.
- Heat-treated under controlled conditions for maximum strength and uniformity.
- For flexibility and strength to support long columns of cement during primary cementing operations.
Specification
| Casing Size, in | Total Length, in | Basket O.D. | Min. Hole Size, in | No. Of Bows | |
| in | mm | ||||
| 4 1/2 | 24 1/2 | 12 1/2 | 317.5 | 6 | 10 |
| 5 | 24 1/2 | 13 | 342.9 | 6 | 10 |
| 5 1/2 | 24 1/2 | 13 1/2 | 342.9 | 7 1/4 | 12 |
| 6 5/8 | 24 1/2 | 14 5/8 | 371.5 | 8 3/8 | 12 |
| 7 | 24 1/2 | 15 | 381 | 8 3/8 | 14 |
| 7 5/8 | 24 1/2 | 15 3/8 | 396.9 | 9 1/2 | 14 |
| 8 5/8 | 24 1/2 | 16 5/8 | 422.3 | 10 5/8 | 16 |
| 9 5/8 | 24 1/2 | 17 5/8 | 447.7 | 11 5/8 | 18 |
| 10 3/4 | 24 1/2 | 18 3/4 | 476.3 | 12 3/4 | 18 |
| 11 3/4 | 24 1/2 | 19 3/4 | 501.7 | 13 3/4 | 20 |
| 11 3/8 | 24 1/2 | 21 3/8 | 542.9 | 15 1/2 | 24 |
| 16 | 24 1/2 | 24 | 609.6 | 18 | 28 |
| 18 5/8 | 24 1/2 | 26 5/8 | 676.3 | 20 5/8 | 34 |
| 20 | 24 1/2 | 28 | 711.2 | 22 | 34 |
