Low Alloy Steel N11-20 Seating Nipple Oilfield
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
25 workdays
Brand:
Zhongshi
Product Description
Low Alloy Steel N11-20 Seating Nipple Oilfield Pump Parts
Seating nipple description
Seating nipple is a kind of pump parts for sucker rod pumps and tubing pumps.
Material of seating nipple: carbon steel, low alloy steel
Features
1.Mechanical properties, surface finish and dimensional accuracy is higher than the standard requirements.
2.API standard or customized
3.Long service life
Technical parameters
| size(mm) | OD mm (-0.013-0mm) | Length m (+/-6.35mm) | Note |
| Ø28 | Ø26.99 | <=6.6m | PL<2.1,Straightness measurement value is less than0.03mm/ft；PL≥2.1m,Straightness measurement value is less than0.18mm/ft |
| Ø32 | Ø31.75 | ||
| Ø38 | Ø38.10 | ||
| Ø44 | Ø44.45 | ||
| Ø50 | Ø50.80 | ||
| Ø57 | Ø57.15 | ||
| Ø63 | Ø63.50 | ||
| Ø70 | Ø69.85 | ||
| Ø95 | Ø95.25 |

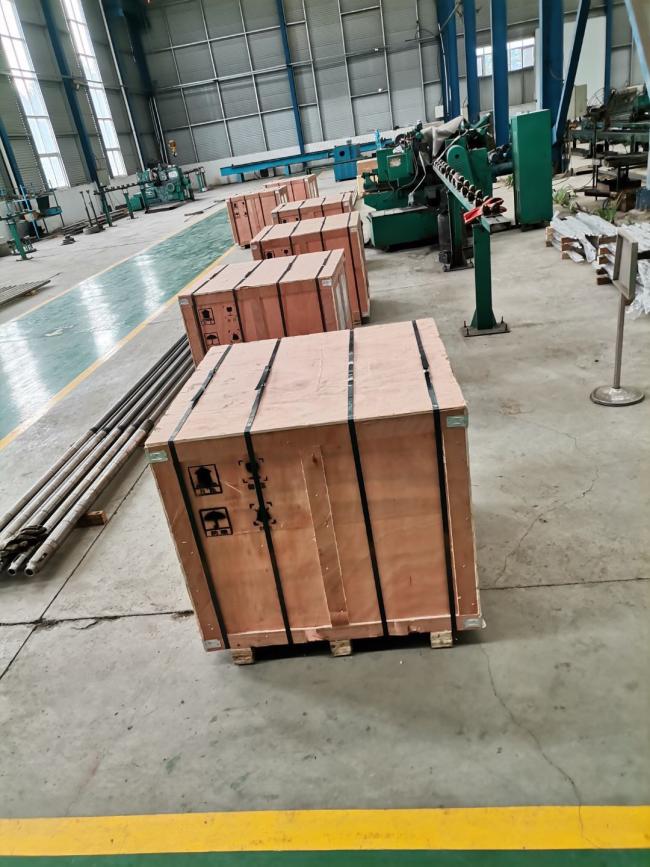

Seating nipple packing photo
