API 11AX 0061 Oilfield Pump Parts Pin Ends Spray Metal Coating Pump Plunger
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
10~15 workdays
Brand:
Zhongshi
Product Description
Pin Ends Spray Metal Coating Plungers Oilfield Pump Parts
Pin Ends Pump Plungers Description
Pump plunger moves up and down in the rod pump to extract oil from the oilwell, which is a key part.
Coating type for plunger: spray metal and chrome plated. Spray metal is more popular.
Threads are usual outer threads, that is pin end.
Technical Specifications
| Part code | Specification | API code. | description |
| P21A | P21A-106(XX)-L | P21-106 | Plunger, Pin End, One Piece |
| P21A-125(XX)-L | P21-125 | ||
| P21A-150(XX)-L | P21-150 | ||
| P21A-175(XX)-L | P21-175 | ||
| P21A-200(XX)-L | P21-200 | ||
| P21A-225(XX)-L | P21-225 | ||
| P21A-250(XX)-L | P21-250 | ||
| P21I | P21I-106(XX)-L | P21-106 | Plunger, Pin End, One Piece, inclined plane |
| P21I-125(XX)-L | P21-125 | ||
| P21I-150(XX)-L | P21-150 | ||
| P21I-175(XX)-L | P21-175 | ||
| P21I-200(XX)-L | P21-200 | ||
| P21I-225(XX)-L | P21-225 | ||
| P21I-250(XX)-L | P21-250 | ||
| P21I-275(XX)-L | P21-275 | ||
| P21I-325(XX)-L | — | ||
| P21I-375(XX)-L | P21-375 | ||
| P22 | P22-125(XX)-L | P22-125 | Plunger, Assembled |
| P22-150(XX)-L | P22-150 | ||
| P22-175(XX)-L | P22-175 | ||
| P22-200(XX)-L | P22-200 | ||
| P22-225(XX)-L | P22-225 | ||
| P22-250(XX)-L | P22-250 | ||
| P22-275(XX)-L | P22-275 | ||
| P23 | P23-175(XX)-L | P23-175 | Plunger, Box End |
| P23-225(XX)-L | P23-225 | ||
| P23-275(XX)-L | P23-275 | ||
| P23-375(XX)-L | P23-375 |
Note:
1)“XX” is Material identification symbol;
2)L is standard strength for plunger; or can be as requirements
3)Two ends are monel connector or other alloy steel;
4) Annular grooves on the surface is according to user needs.

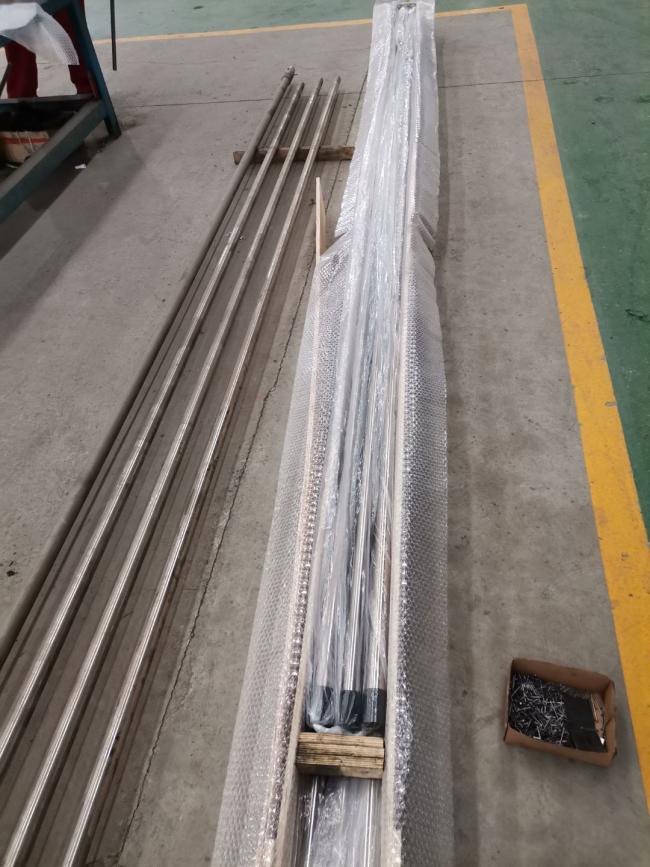

Photo:
