B11 B12 And B13 Oilfield Pump Parts Rod Pump Barrel
B11 B12 And B13 Rod Pump Barrel Oilfield Pump Parts
Rod Pump Barrel Description:
The usual API specification of Pump barrel is B11,B12 and B13
The material of pump barrel is as follows
plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Technical Specifications
| Model | Specification | Part No. | API No. |
|
B11—Barrel,Thin wall,Rod pump (Surface heat treatment hardening is not supported at this time.) |
1 1/4” | B11-125(XX)-L | B11-125 |
| 1 1/2” | B11-150(XX)-L | B11-150 | |
| 2” | B11-200(XX)-L | B11-200 | |
| 2 1/2” | B11-250(XX)-L | B11-250 | |
| B12—Barrel,Heavy wall,Rod pump | 1 1/16” | B12-106(XX)-L | B12-106 |
| 1 1/4” | B12-125(XX)-L | B12-125 | |
| 1 1/2” | B12-150(XX)-L | B12-150 | |
| 1 3/4” | B12-175(XX)-L | B12-175 | |
| 2 1/4” | B12-225(XX)-L | B12-225 | |
| B13—Barrel,Heavy wall,Tubing pump | 1 3/4” | B13-175(XX)-L | B13-175 |
| 2 1/4” | B13-225(XX)-L | B13-225 | |
| 2 3/4” | B13-275(XX)-L | B13-275 | |
| 3 3/4” | B13-375(XX)-L | B13-375 | |
| B16—Barrel,Heavy wall,Box end,Rod Pump | 1 1/4” | B16-125(XX)-L | B16-125 |
| 1 1/2” | B16-150(XX)-L | B16-150 | |
| 2” | B16-200(XX)-L | B16-200 |
Note:
(1)“XX” is Material identification symbol
(2)“L” is standard length,8ft~24ft,each 2ft increments
Production standard: API 11AX
Corrosion resistant coatiing for the barrel surface: chrome plated

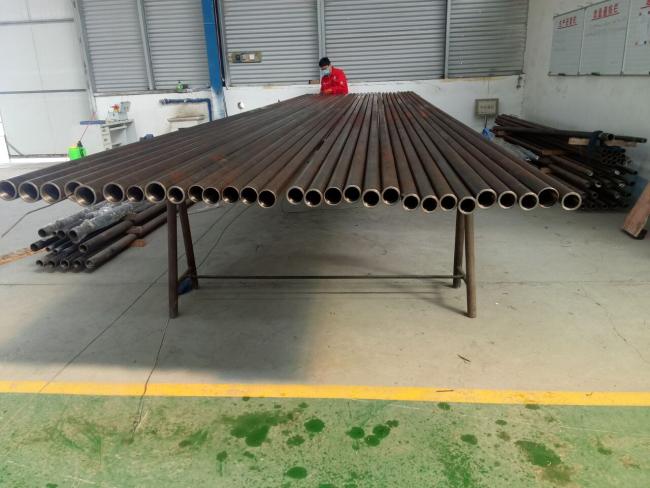

Pictures
