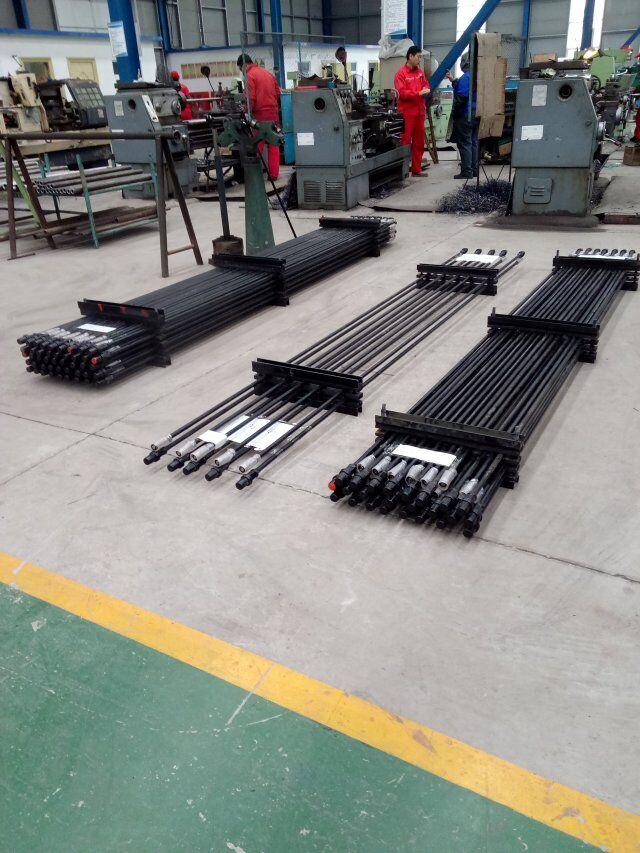

Precision Heavy Wall Barrel Oilfield Sucker Rods Of THC Tubing
Precision Heavy Wall Barrel Downhole Pumps Of THC Tubing
Heavy Wall Barrel THC downhole pump Description
THC tubing pump is with heavy wall barrel, suitable for higher volumes and pressures.
The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.
The retrievable type standing valve rests in a cup-type seating nipple at the bottom of the tubing string. This can be removed with the sucker string by means of a puller pin assembly which is permanently attached to the lower end of the plunger.
Technical parameter list:
| THC Model | Pump diameter (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
| 20-175THC | Ø44.45 | 7-34 | 1-26 | 4-29 | 2-8 | 2 3/8" |
| 25-225THC | Ø57.15 | 2 7/8" | ||||
| 30-275THC | Ø69.85 | 3 1/2" | ||||
| 40-375THC | Ø95.25 | 4 1/2" |
Features:
1. Cup type seating assembly
2. Heavy wall barrel
3. Bottom assembly
