Standing Valve Cage Oilfield Pump Parts Low Alloy Steel

Price Negotiable

Price: Negotiable

MOQ: 1 PCS

Delivery Time: 10~15 workdays

Brand: Zhongshi

Product Description

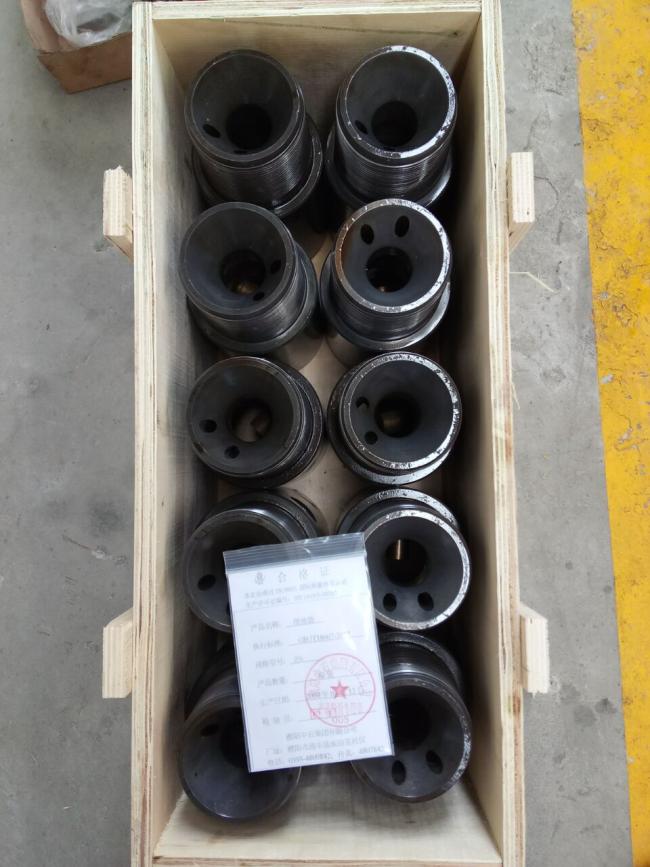

Standing Valve Cage Low Alloy Steel Oilfield Pump Parts

Standing valve cage description:

Pump cage belongs to the pump accessories.

There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together.

While the pump manufacturers usually produce their pump components with an acceptable quality program (such as ISO 9001^[15] or API Spec. Q1^[16]), most pump shops are not covered under these rigorous plans.

API Specifications of Rod Pump Plungers

API Model	Plunger part No.	API No.	Description
P21A	P21A-106(XX)-L	P21-106	Plunger, Pin End, One Piece
	P21A-125(XX)-L	P21-125
	P21A-150(XX)-L	P21-150
	P21A-175(XX)-L	P21-175
	P21A-200(XX)-L	P21-200
	P21A-225(XX)-L	P21-225
	P21A-250(XX)-L	P21-250
P21I	P21I-106(XX)-L	P21-106	Plunger, Pin End, One Piece, inclined plane
	P21I-125(XX)-L	P21-125
	P21I-150(XX)-L	P21-150
	P21I-175(XX)-L	P21-175
	P21I-200(XX)-L	P21-200
	P21I-225(XX)-L	P21-225
	P21I-250(XX)-L	P21-250
	P21I-275(XX)-L	P21-275
	P21I-325(XX)-L	—
	P21I-375(XX)-L	P21-375
P22	P22-125(XX)-L	P22-125	Plunger, Assembled
	P22-150(XX)-L	P22-150
	P22-175(XX)-L	P22-175
	P22-200(XX)-L	P22-200
	P22-225(XX)-L	P22-225
	P22-250(XX)-L	P22-250
	P22-275(XX)-L	P22-275
P23	P23-175(XX)-L	P23-175	Plunger, Box End
	P23-225(XX)-L	P23-225
	P23-275(XX)-L	P23-275
	P23-375(XX)-L	P23-375
