Large TH Well Pump Tubing Oil And Gas Production Used
Large Oil Production Used TH Well Pump Tubing
Large oil production TH tubing pump description:
According to seating mode, the rod pump can be divided into three types: THC pump (Stationary Heavy Wall, Cup Seating, Tubing pump), THM pump (Stationary Heavy Wall Mech. Seating, Tubing Pump) and THD pump.
Tubing pump has simple structure so the displacement is bigger and it is suitable for the shallower well with shallow depth and high production.
Main parts process and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.
API Technical parameters:
TH tubing pump
| tubing pump model | Pump Bore(in) | Length of Plunger (mm) | Range of Stroke (mm) | Pump Constant (m3/d) | Size of matched tubing (in) | Size of connecting Sucker Rod(mm) | Length of extension Coupling | |
| 25-125 | 1.25 | 600-1200 | 600-1200 | 1.14 | 2-1/2 2-7/8 | 16 | 300-900 | |
| 25-150 | 1.5 | 1.642 | 2-1/2 2-7/8 | 16 | ||||
| 25-175 | 1.75 | 2.235 | 2-1/2 2-7/8 | 16 | ||||
| 20-175 | ||||||||
| 25-225 | 2.25 | 3.694 | 2-7/8 | 19 | ||||
| 25-275 | 2.75 | 5.518 | 2-7/8 | 22 | ||||
| 30-275 | 2.75 | 5.518 | 3-1/2 | 22 | ||||
| 30-325 | 3.25 | 7.707 | 3-1/2 | 22 | ||||
| 30-375 | 3.75 | 10.261 | 3-1/2 | 25 | ||||
| 40-375 | 3.75 | 10.261 | 4 | 25 |

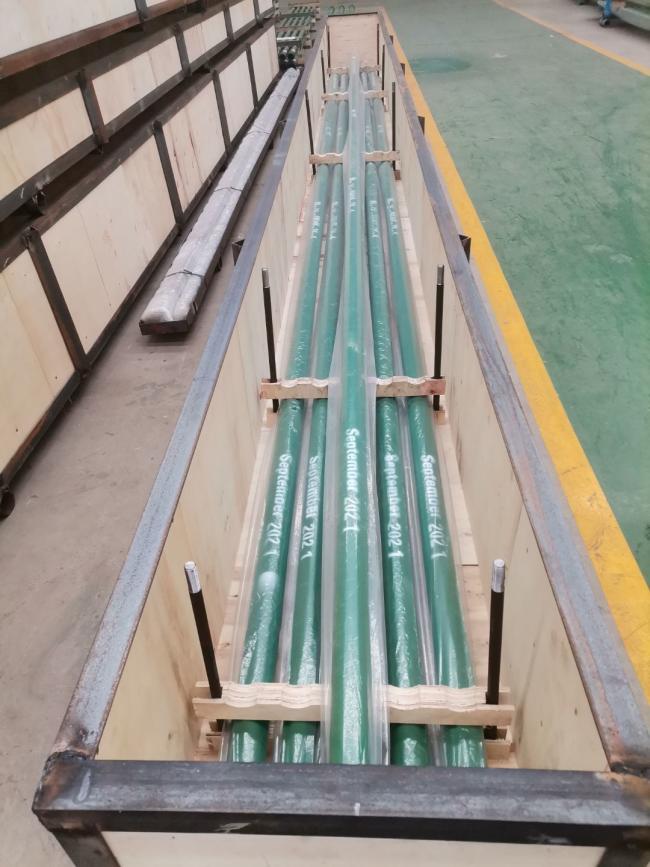

Product photo:
