Hinged Metal Steel Fins Cementing Basket Well Drilling

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: depends on quantity

Brand: Puyang Zhongshi Group

Product Description

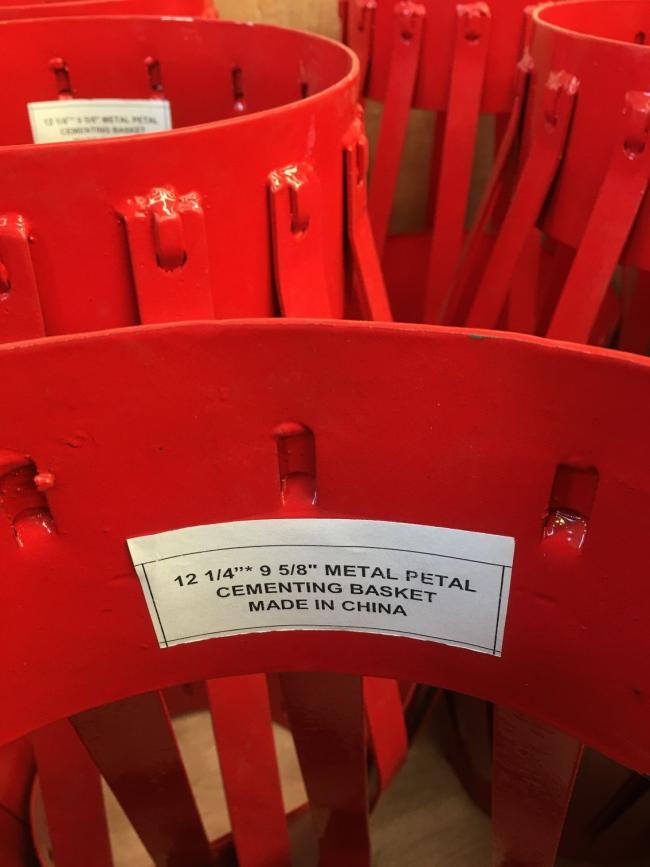

Hinged Metal Steel Fins Cementing Basket

Each Slip on welded cement basket is made of high power metal to provide maximum flexibility and fluid passage while maintaining optimum support. The cement basket can be rotated and reciprocated and available in a choice of welded and non- welded convex shape bows.

Hinged Metal Steel Fins Cementing Basket Features

flexible bows that are mounted on the end collar.
available in 4 ½" to 20" sizes and any kind of specific sizes
Bows are hardened and tempered for maximum strength and uniformit
The cementing basket can expand or contract as needed and can be rotated or reciprocated

Hinged Metal Steel Fins Cementing Basket Specification

Casing Size (in)	No. of Bows	Total Length	Basket O.D		Min. Hose Size (in)
Casing Size (in)	No. of Bows	Total Length	in	mm	Min. Hose Size (in)
4 1/2	10	24 1/2	12 1/2	317.5	6
5	10	24 1/2	13	342.9	6
5 1/2	12	24 1/2	13 1/2	342.9	7 1/4
6 5/8	12	24 1/2	14 5/8	371.5	8 3/8
7	14	24 1/2	15	381	8 3/8
7 5/8	14	24 1/2	15 5/8	396.9	9 1/2
8 5/8	16	24 1/2	16 5/8	422.3	10 5/8
9 5/8	18	24 1/2	17 5/8	447.7	11 5/8
10 3/4	18	24 1/2	18 3/4	476.3	12 3/4
11 3/4	20	24 1/2	19 3/4	501.7	13 3/4
11 3/8	24	24 1/2	21 3/8	542.9	15 1/2
16	28	24 1/2	24	609.6	18
18 5/8	34	24 1/2	26 5/8	676.3	20 5/8
20	34	24 1/2	28	711.2	22
