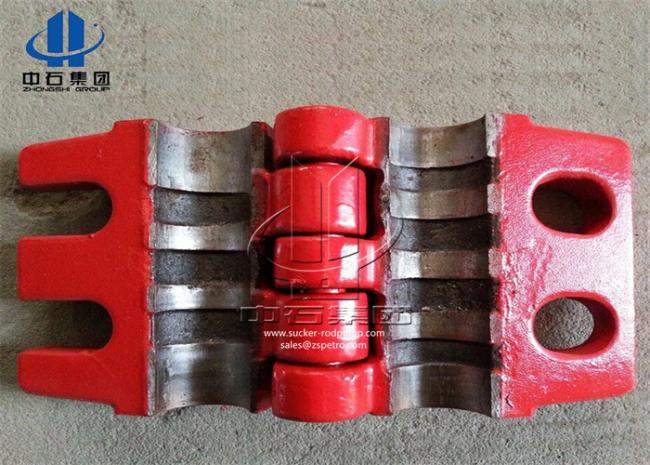

AISI Connect Steel Polished Rod Clamp Pump Unit For Oilfield
API 11B certificate triple bolts polished rod clip/clamp for oilfield
Products Descripition:
1. Chemical Composition
To meet the requirements of this specification, polished rod manufactured from any AISI or equivalent specification recommended cast iron or carbon steel as follows.
a) ASTM A536 ductile iron 65-45-12, or equivalent international series number.
b) Carbon Steel; aisi1015 to 1045 or AISI 1515 to 1545, or equivalent international series number.
2. Mechanical Properties
Tie allowable hardness range for polished rod clamps is between 190 and 300 HB
3. Maximum Load Rating
Each polished rod clamp design has a stated maximum load rating. The maximum rated load is no more than 75% of the minimum load to initial slippage when a new polished rod clamp which has successfully completed validation testing per in accordance with this specification.
4. Specification
Polished rod clamps are furnished for the polished rod sizes.
| Type | Working load |
Max text load |
Size |
Bolt torque |
Height |
Body material |
Shipping weight |
| Triple Bolt | 45,000 lb | 76,000 lb |
1-1/8” 1-1/4” 1-1/2” |
250 lb-ft | 7.35” |
Forged Alloy Steel |
12.5 LBS |
| WL12000 single bolt | Polished Rod Diameter | Working load | Tightening Torque | Weight |
| 22mm | 78.5KN | 3200N.m | 5.6Kg | |
| 25mm | 100KN | 5.5Kg | ||
| 25.4mm (1in) | 100KN | 5.5Kg | ||
| 28.6mm (1 1/8in) | 118KN | 5.5Kg | ||
| WL16000 two bolt | Polished Rod Diameter | Working load | Tightening Torque | Weight |
| 25.4mm (1 in) | 118KN | 1545N.m | 7.3 Kg | |
| 28mm | 157KN | 7.2 Kg | ||
| 28.6mm (1 1/8in) | 157KN | 7.2 Kg | ||
| 31.8mm (1 1/4in) | 157KN | 7.1 Kg | ||
| 32mm | 157KN | 7.1 Kg | ||
| 38.1mm (1 1/2in) | 178KN | 9 Kg | ||
| WL18100 three bolt | Polished Rod Diameter | Working load | Tightening Torque | Weight |
| 31.8mm (1 1/4in) | 178 KN | 1977N.m | 10.35Kg | |
| 32mm | 178 KN | 10.35Kg | ||
| 38.1mm (1 1/2in) | 178 KN | 10.2Kg |
