Polished Sucker Rod Clamp Alloy Steel Cast Forged Clip
API Polished Sucker Rod Clamp Cast Forged Clip With Alloy Steel
Products Descripition:

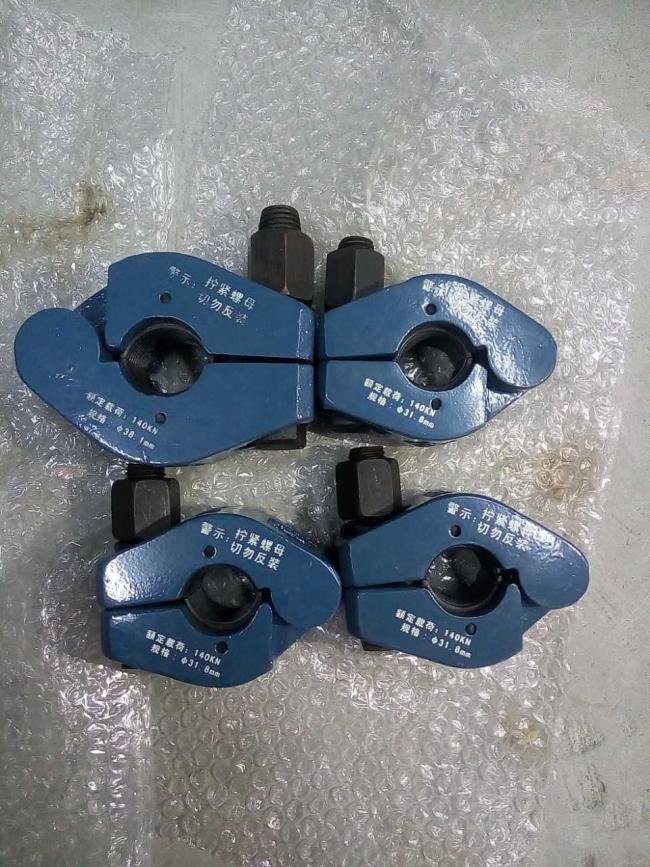

The polished rod clamp is of butterfly structure, it is fixed on the polished rod as retaining device for the rope hanger. It makes the pumping unit horsehead connected with polished rod through rod eye lifting device, The polished rod clamp is an important part connecting oil pump and sucker rod, it is required not only reliable, have a certain capacity, but also can not cause damage for sucker rod.
1. Chemical Composition
To meet the requirements of this specification, polished rod manufactured from any AISI or equivalent specification recommended cast iron or carbon steel as follows.
a) Carbon Steel; aisi1015 to 1045 or AISI 1515 to 1545, or equivalent international series number.
b) ASTM A536 ductile iron 65-45-12, or equivalent international series number.
2. Mechanical Properties
Tie allowable hardness range for polished rod clamps is between 190 and 300 HB
4. Specification
| WL12000 single bolt | Polished Rod Diameter | Working load | Tightening Torque | Weight |
| 22mm | 78.5KN | 3200N.m | 5.6Kg | |
| 25mm | 100KN | 5.5Kg | ||
| 25.4mm (1in) | 100KN | 5.5Kg | ||
| 28.6mm (1 1/8in) | 118KN | 5.5Kg | ||
| WL16000 two bolt | Polished Rod Diameter | Working load | Tightening Torque | Weight |
| 25.4mm (1 in) | 118KN | 1545N.m | 7.3 Kg | |
| 28mm | 157KN | 7.2 Kg | ||
| 28.6mm (1 1/8in) | 157KN | 7.2 Kg | ||
| 31.8mm (1 1/4in) | 157KN | 7.1 Kg | ||
| 32mm | 157KN | 7.1 Kg | ||
| 38.1mm (1 1/2in) | 178KN | 9 Kg | ||
| WL18100 three bolt | Polished Rod Diameter | Working load | Tightening Torque | Weight |
| 31.8mm (1 1/4in) | 178 KN | 1977N.m | 10.35Kg | |
| 32mm | 178 KN | 10.35Kg | ||
| 38.1mm (1 1/2in) | 178 KN | 10.2Kg |
