Oilfield Downhole Cementing Reamer Shoe With Aluminum Nose
Price:
Negotiable
MOQ:
1
Delivery Time:
depends on quantity
Brand:
Puyang Zhongshi Group
Product Description

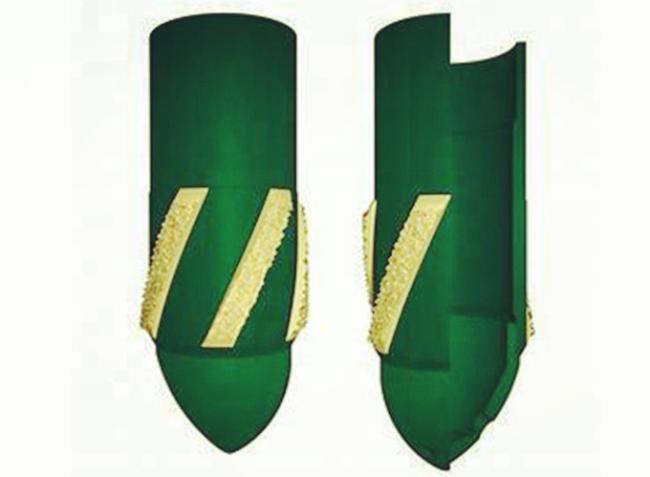

Oilfield Downhole Cementing Reamer Shoe with Aluminum Nose
The reamer shoe is a stabilized casing shoe with hardband onto the outer body and the nose is eccentric to give a mule shoe profile so that it can be rotated off ledges and is made of aluminum so that it can be drilled out with a PDC bit. The reamer shoe has three 2-in., directed-flow ports in the nose.The reamer shoes are designed to overcome various difficulties encountered in running casing.
Oilfield Downhole Cementing Reamer Shoe with Aluminum Nose Features
- High strength design ensures high pressure bump and back flow resistance;
- Withstands long periods of circulation;
- Automatic fill-up, saves considerable running-in time of casing;
- Easy drill out with PDC bits;
- Special non-rotational groove design ensures cementing plugs dilled out quickly;
- Material: P-110, K55, J55, N80
- More specifications or special requirements, please contact us freely
Oilfield Downhole Cementing Reamer Shoe with Aluminum Nose Specification
| Size (in) | Bore O.D (in) | Bore I.D (in) | Min.Bore Parameter (in) | Thread Type | Ib (in 2) |
| 5 1/ 2” | 6” | 4 3/ 4” | 2” | 5 1/ 2” LCSG | 4351 |
| 7” | 7 5/ 8” | 6 1/ 4” | 2 3/ 8” | 7” LCSG | 3626 |
| 9 5/ 8” | 10 5/ 8” | 8 5/ 8” | 2 3/ 8” | 9 5/ 8” LCSG | 3626 |
| 13 3/ 8” | 14 3/ 8” | 12 3/ 8” | 2 3/ 8” | 13 3/ 8” LCSG | 3626 |
