Heavy Wall Chrome Plating Well Pump Tubing Antifriction For Oil Production
Large Bore Oil Well Pump Tubing For Large Production
Large bore oil tubing pump description:
antifriction
API code explain:
API-TH(B)M,Tubing ,Heavy Wall Barrel ,Mechanical Anchor Pump
API-TH(B)C,Tubing ,Heavy Wall Barrel ,Cup Type Anchor Pump
The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.
Tubing pump features:
1. Be used in some large production wells
2. Tubing pump is the strongest pump
THM technical parameters table
| THM size | pump OD(in) | Barrel length(ft) | Plunger length(ft) | stroke length(ft) |
Tubing size EUE(in) |
Sucker rod |
| 20-175THM | Ø44.45 | 7-34 | 1-26 | 4-29 | 2 3/8" |
5/8" 3/4" 1" |
| 25-225THM | Ø57.15 | 2 7/8" | ||||
| 30-275THM | Ø69.85 | 3 1/2" | ||||
| 40-375THM | Ø95.25 | 4 1/2" |

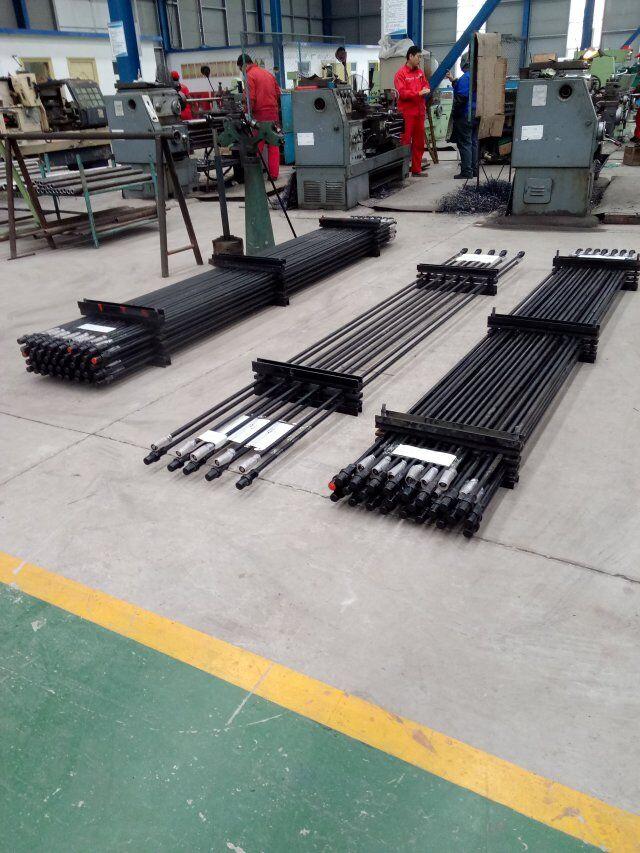

Pump parts in assembly:
