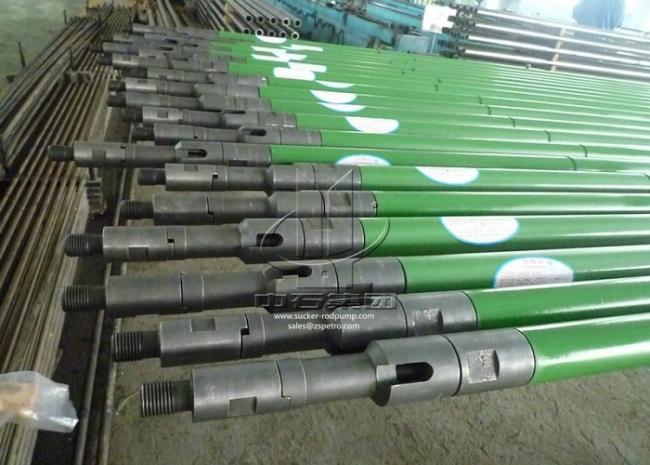

Stainless Steel Valve Ball Sucker Rod Pump AISI1045 Chrome Plated Barrel Sprayed Plunger
API 11AX Sucker rod pump AISI1045 chrome-plated pump barrel sprayed plunger stainless steel valve ball
Working principle: Oil well pump is a special oil pumping form of reciprocating pump. The power is transmitted from the ground to the downhole through the help of the sucker rod, which makes the plunger of the oil well pump reciprocate up and down, and lift the oil along the oil pipe to the ground.
|
型号 Model |
公称直径, mm (in) |
柱塞长度, m Plunger Length(ft) |
冲程, m stroke |
泵常数, m3/d PumpConstant |
连接油管螺纹 Tubing and Thread |
连接抽油杆, in Sucker Rod |
| 20-125TH | 32(1.25) | 1.2-1.8(4-6) | 0.6-7.3 | 1.14 | 2-3/8 | 3/4 |
| 25-125TH | 32(1.25) | 0.6-7.3 | 1.14 | 2-7/8 | 3/4 | |
| 20-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 2-3/8 | 3/4 | |
| 25-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 2-7/8 | 3/4 | |
| 20-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 2-3/8 | 3/4 | |
| 25-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 2-7/8 | 3/4 | |
| 25-200TH | 50(2.00) | 0.6-7.3 | 2.92 | 2-7/8 | 3/4 | |
| 25-225TH | 57(2.25) | 0.6-7.3 | 3.69 | 2 -7/8 | 3/4 | |
| 30-250TH | 63(2.50) | 0.6-7.3 | 4.56 | 3-1.2 | 7/8 | |
| 30-275TH | 70(2.75) | 0.6-7.3 | 5.50 | 3-1/2 | 7/8 | |
| 30-325TH | 83(3.25) | 0.6-7.3 | 7.70 | 4 | 7/8 | |
| 40-375TH | 95(3.75) | 0.6-7.3 | 10.26 | 4-1/2 | 1 |
|
Place of Origin
|
China |
| Brand Name | Puyangzhongshi |
| Model Number | TH |
| Application | Oil and gas |
| Condition | New |
| Warranty | 1 Year |
| Applicable Industries | Energy & Mining, oil and gas |
| Weight (KG) | 50-220 |
| Showroom Location | China |
| Video outgoing-inspection |
Provided
|
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Core Components | Pump, barrel, plunger, valve ball and seat, rod, point |
| Certification | API 11AX-0061 |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
