Downhole Sucker Rod Pumps For Oil Gas Production
Oil And Gas Production Downhole Sucker Rod Pump
Downhole sucker rod pump description:
Downhole sucker rod pumps are manufactured in accordance with API 11AX, and have been API monogrammed and ISO 9001 licensed. Technology was introduced from USA in 1980’ s. More than 40 models and sizes of sucker rod pumps are available with the diameter ranging from 28 mm to 108 mm. Annual production capacity: 150, 000 sets .
Conventional pump types: rod pump, tubing pump and special purpose pump.
Structure of pump
The main spare parts of subsurface sucker rod pumps are barrel, plunger and valve.
Type of barrel: chrome plated or carbonitrided surface
Type of plunger: metal spray or chrome plated surface
Valve ball and seat materials: stainless steel and tungsten carbide
RWAM model specification list:
| RWAM model | Pump OD (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
| 20-125RWAM | Ø31.75 | 2.1-10 | 0.3-8.0 | 1.2-9.0 | / | 2-3/8” |
| 20-125RWBM | ||||||
| 20-150RWAM | Ø38.1 | 2-7/8” | ||||
| 20-150RWBM | ||||||
| 25-200RWAM | Ø50.80 | |||||
| 25-200RWBM | ||||||
| 30-250RWAM | Ø63.50 | 3 1/2" | ||||
| 30-250RWBM |

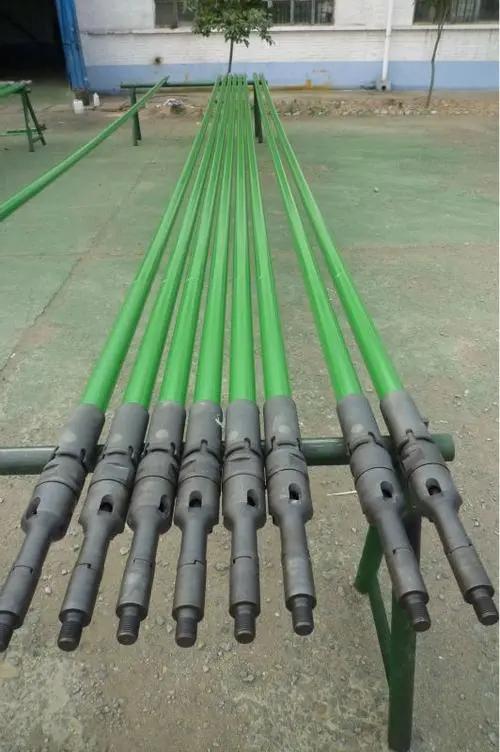

Pump photos:
