Artificial lift Oil Production Sucker Rod Pump Petroleum Equipment
Petroleum Equipment Sucker Rod Pump For Oil Production
Petroleum Equipment Sucker Rod Pump description:
1. When checking the pump,do not need pull tubing;
2. Compared with the other standard pump, the pump is not easy to fracture and bending deformation;
3. Adapt to deep well pump.
Product Model; RHAC, RWAC, RHAM, RWAM, RHBC, RWBC, RHBM, RWBM;
Pump Barrel Material: AISI1045 steel;
Pump Barrel Material: Chrome plated;
Plunger Material: AISI1045 steel;
Plunger Spray Welding Material; Nickel base alloy;
Valve Seat Material; 2cr13;
Column Plug Valve Cover Material: AISI 1045 steel;
The Pump Barrel and Plunger Clearance; 0.001" -0.005" ;
Type and Size of Connection Threads of Sucker Rod Pump and Tubing; 2-3/8 EUE/NUE, 2-7/8 EUE/NUE, 3-1/2 EUE/NUE.
Type and Size of Connection Threads of Sucker Rod Pump and Sucker Rod; 3/4. Meet API 11AX, customizing according to customer's requirements.
RHAC pump technical parameters table:
| RHAC model | Pump OD (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) | Sucker rod size |
| 20-125RHAC | Ø31.75 | 2.1-10.4 | 0.3-8.0 | 1.2-9.0 | 0.3-0.9 | 2-3/8” |
CYJ16 CYJ19 |
| 25-150RHAC | Ø38.10 | 2-7/8” | |||||
| 25-175RHAC | Ø44.45 | 2-7/8” | |||||
| 30-225RHAC | Ø57.15 | 3-1/2” |
Feature:
1.extra small clearance between the plunger and the inside wall of the barrel.
2.The top anchored pump with stationary barrel is suitable for sandy wells.
3.The bottom anchored pump with stationary barrel is suitable for deep wells.

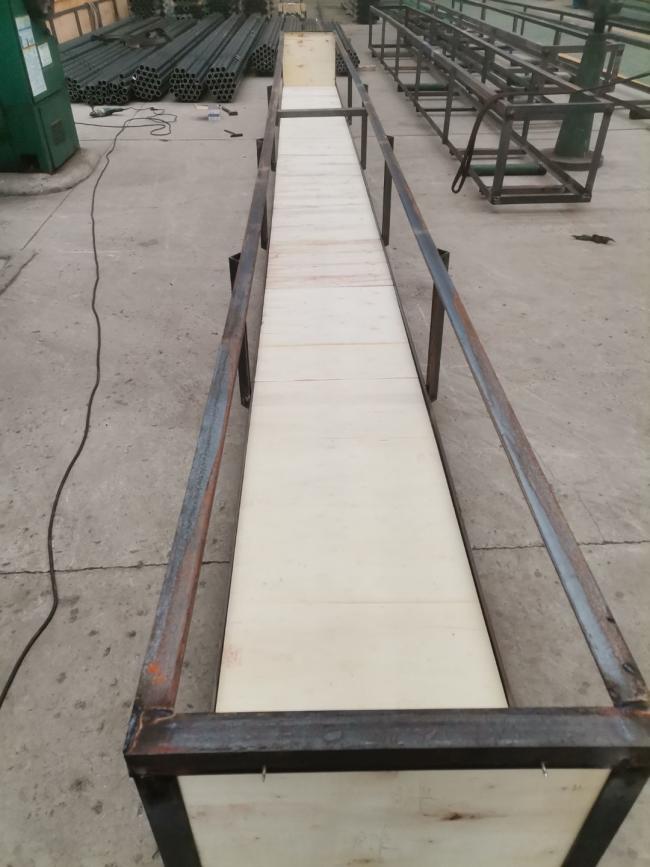

Pump packing photo:
