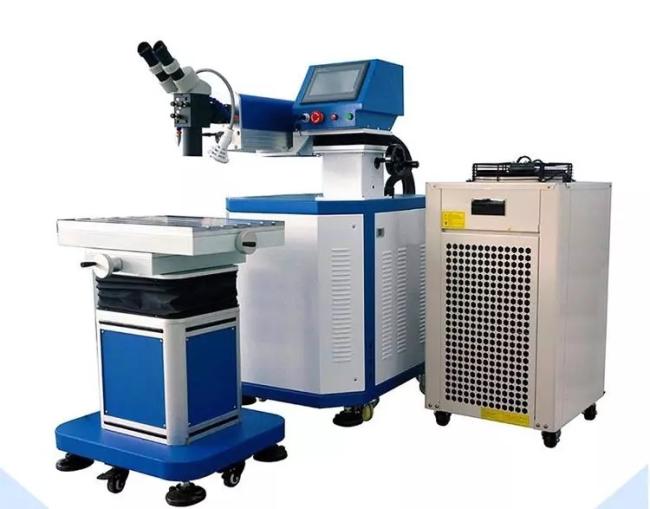

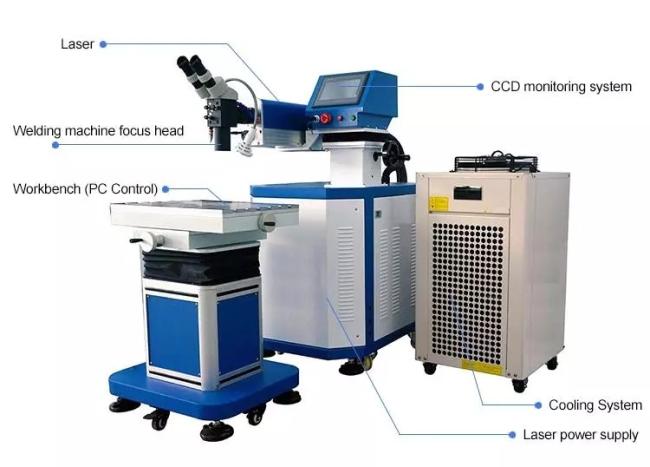

Used laser welder for jewelry, metal, or stainless steel soldering machine laser welder weld machine

Product Description

Laser welding is a highly efficient precision welding method which involves the use of a high-energy laser beam as a heat source . Laser welding is one of the most important aspects of laser processing technology. laser radiates and heats the workpiece surface, The surface heat diffuses to the inside through heat conduction, Then the laser makes the workpiece melt and forms the specific welding pool by controlling the laser pulse width, energy, peak power and repetition frequency. Due to its unique advantages, it has been successfully applied to the precise welding of micro- and small-sized parts.

Laser welding is a fusion welding technology, laser welder uses laser beam as an energy source and makes it impact on the weldment joints to realize welding .

Features:

1, The use of high-speed scanning galvanometer for laser positioning, with a speed of up to 7000mm / s, greatly reduces the welding time between the empty time, which greatly improve production efficiency;

2, Digital galvanometer interface, anti-interference ability, better stability;

3, All Chinese special control components are powerful, easy to operate, and compatible with a variety of format files;

4. High-power cooling system to meet the continuous production of mass production.

5. Processing speed and thermal deformation are minimal and do not affect the product within the electronic components or chemical composition of the performance;

6. Can be equipped with different welding range of field mirror and welding power;

7, With the corresponding supporting institutions to achieve online production.

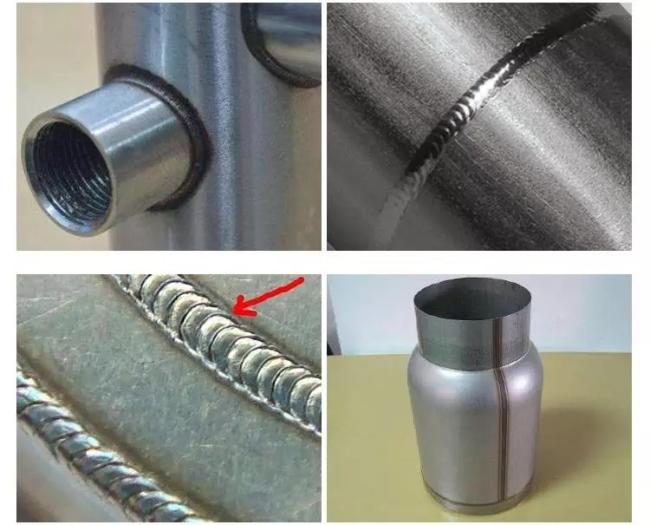

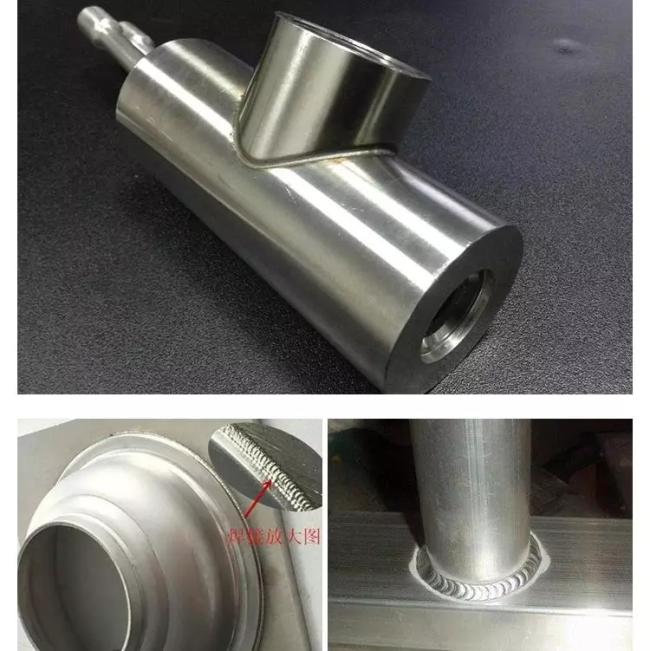

Sample show:
