High Speed Mini Portable Fiber Laser Marking Machine For Marking Metals
High Speed Optical Mini Portable 20w Fiber Laser Marking Machine For Marking Metals
Surface Etching: A surface etch usually gives a bright contrasting mark. It is ideal for marking on coatings without penetrating through, such as Chrome, Nickel, etc.
Surface Annealing: Most common when marking on stainless steel.
Ablation: The ability to remove surface treatments (i.e. Coatings of paint) to create high contrast without damaging the base material – widely used in backlit material processing, such as backlit buttons.
Paint Removal: The process of burning or vaporizing the a coating of paint that is either on metal or plastic. Most common for backlit buttons.
Engraving: The process of vaporizing a material to dig into the part.
Product Parameters
| Type | Fiber laser marking machine |
| Model Number | KY-FB-20w |
| Table size | 320*200mm |
| Weight | 30KG |
| Material | Aluminum |
| Laser wavelength | 1060nm |
| Laser power | 20W or 30W optional |
| Laser Type | pulsed or continuous |
| Marking depth | ≤0. 5mm as the material may |
| Marking line speed | ≤7000mm / s |
| Minimum characters | 0.15mm |
| The minimum line width | 0.012mm |
| Repeatability | ±0.002 |
| Repeatability | Standard 100mmX100mm |
| Operating Life | laser Run> 100,000 hours |
| Dimensions | 620 mm X 760 mm X 1400 mm Weight 45 kg |
| Work table | 320 mm X 200 mm bearing 30 kg |
| Lifting heigh | lifting 550 |
| Cooling system | Air cooling |
| Operating System | WinXP / Win7 |
| Graphic Converter | CAD, CorelDRAW, CAXA |
| Environment | -20 ° C-45 ° C, relative humidity 80% |

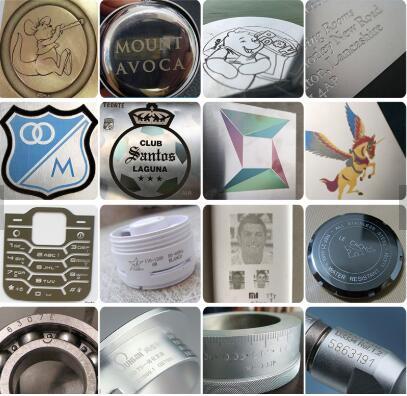

Sample show:
