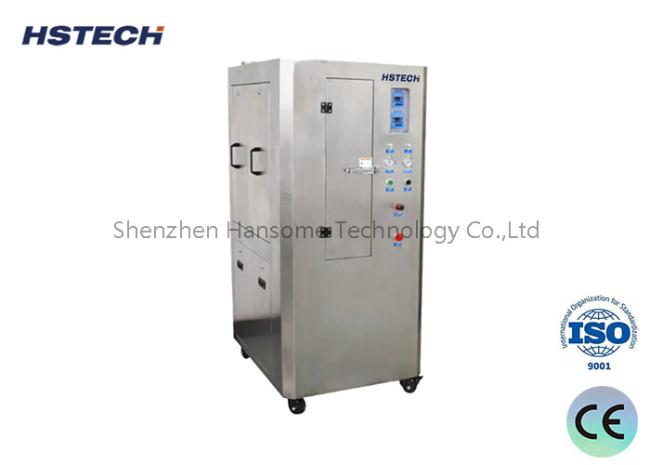

60L SMT Stencil Cleaning Machine with 3 Level Filter System and 0-7KG Pressure​

Introduction

This machine used to cleaning stencil, steel mesh, copper screen, gule screen, etc SMT process screens.

Features

1, Full pneumatic power, connect with the air compressor, don't need connect the 200V or 110V voltage.

2, The whole process including cleaning and drying.

3, The machine has the timer to set the show the cleaning and drying time, also has the pressure gauge to show the cleaning and drying pressure.

4, The machine also equipped with a counter, can counting the cleaning screen quantities.

5, Easy operation, after setting the cleaning and drying, press the start to begin the process.

6, Equipped with a emergency stop button, press the button, the machine will stop working if any error.

7, Whole machine made of stainless steel, much durable, resist hurt by acid and alkali cleaning chemistry.

8, Using high quality bump and air source filter, the air won't dmage the stencils.

9, 3 Level high precision filter system, the cleaning solvent can reuse many times without damage.

Specification

Product details

1. Equipment operation and display integrated in the same panel can intuitively grasp the operating status of the equipment; one-button operation, the entire equipment is simple to operate.

2.2. The pressure regulating filter at the inlet end can be used to select the appropriate air pressure according to the actual application; it can effectively remove the water in the compressed air, which is conducive to the protection of pneumatic components.

3.Adopt high quality pneumatic diaphragm pump: durable; pump body is equipped with liquid filling and draining device, which can effectively avoid liquid splashing caused by liquid filling and draining.

4.Full SUS304 stainless steel filter, filtration of tiny particles, filtration accuracy 5μm and 1μm; enhance the cleaning quality.
