SMT Cleaning Equipment HS-800 Nozzle Cleaner with Tray for High Precision Nozzles
SMT Cleaning Equipment HS-800 Nozzle Cleaner with Tray for High Precision Nozzles
Introduction

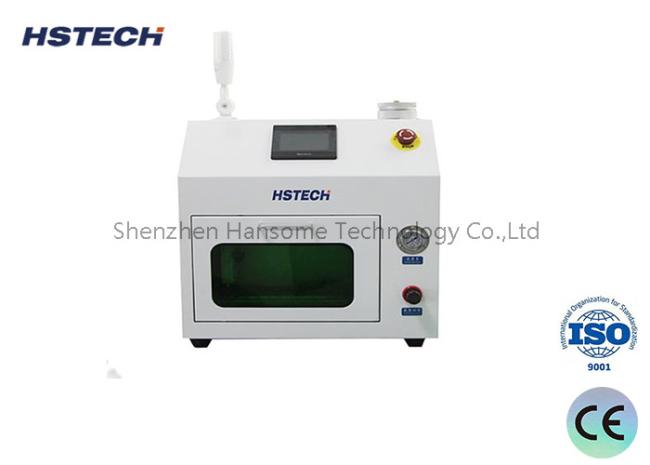

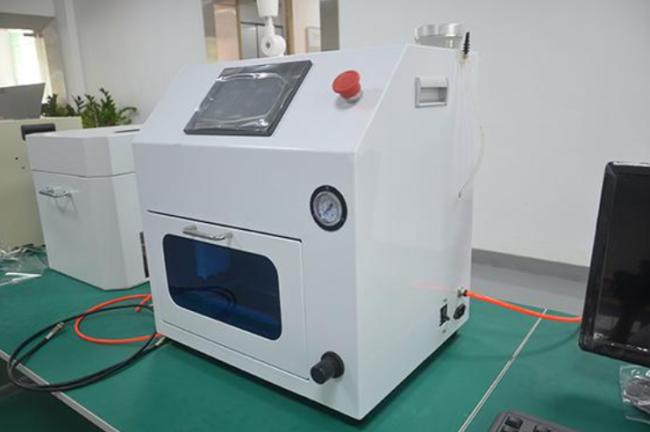

HS-800 nozzle cleaning machine automatically complete the cleaning and drying, the use of multi-nozzle spray, the use of fluid dynamics will be crushed into a strong water mist, to the sonic kinetic energy spray nozzle, the formation of a continuous shape to clean the surface and the internal dirt, suitable for cleaning small parts and high-precision nozzles.
Product Features

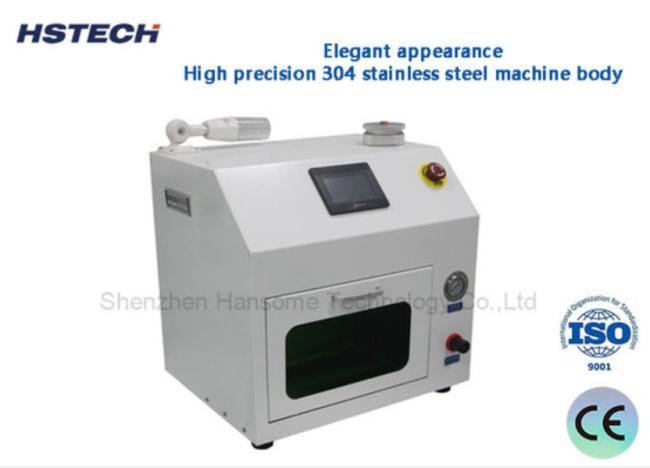

1, HS-800 beautiful appearance, using 304 stainless steel body.
2,Efficient cleaning, up to 30 nozzles at a time.
3,Applicable to a variety of nozzle shapes, including cross, I-beam and special shapes.
4,Supersonic atomized spray, cleaning thoroughly, even small holes are clear.
5,Easy to operate, support English interface.
6,Set observation window, real-time monitoring of the cleaning process.
7,Use D.I water, safe and harmless to the nozzle and reflective plate.
8, touch screen + PLC control, stable and reliable performance.
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Machine size
Nozzle Tray
