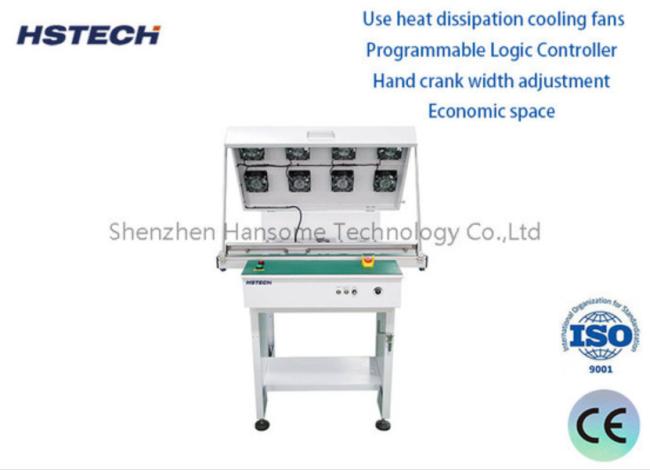

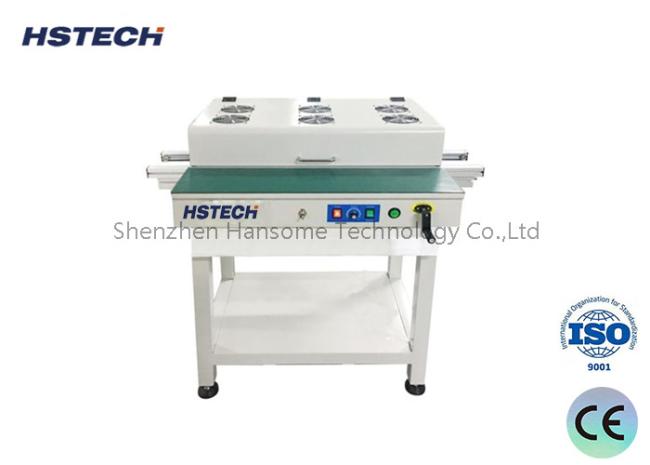

Aluminium Transport Rail Conveyor for 50*50-500*390 mm Circuit Boards
Optional Functions Available PCB Handling Equipment for 50*50-500*390mm Boards
Features
1.Body Material: Stable thickness of stainless steel to ensure robustness and durability.
2.PCB board adaptability: supports PCB boards with a maximum width of 390mm, and is equipped with the function of manually adjusting the board width to adapt to different size requirements.
3. Conveyor speed control: Equipped with knob, the running speed of the conveyor can be easily adjusted to meet different production rhythms.
4. Worktable design: anti-static green worktable is adopted to effectively protect electronic components from static electricity damage.
5. Conveyor rail: made of aluminium alloy, ensuring smooth and wear-resistant conveyance and prolonging service life.
6. Operation and control: LED button intuitive control, with speed adjustment motor, to achieve precise operation.
7. Additional functions: Provide optional functions such as tower light, inspection, dust cover, etc., which can be customised according to requirements to meet the needs of different working environments.
8. Individual customisation: Customised design and manufacturing services can be provided according to specific customer requirements.
9. Length options: the length of the equipment provides a variety of options such as 600 mm, 1000 mm, 1500 mm, or customised according to requirements.
10. Online connection: Support SMEMA signal, convenient for online connection with other equipment or production lines for efficient integration.
Translated with DeepL.com (free version)
Specification
| Model | HS-C600/HS-C600S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
