Suction Type Screw Fastening Machine Omron Photoelectric Switch 500*500*100mm 50/60Hz
Price:
Negotiable
MOQ:
1 set
Delivery Time:
7~9 work days
Brand:
HSTECH
Product Description
High Speed Automatic Screw Fastening Robot | Omron Photoelectric Switch | 600*600*100mm | 50/60Hz
Introduction

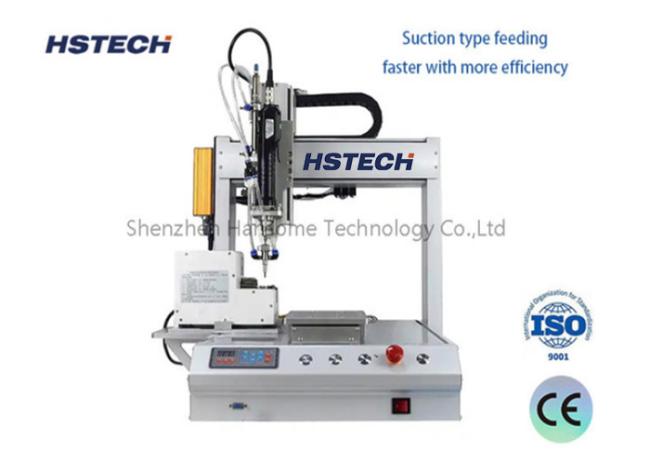

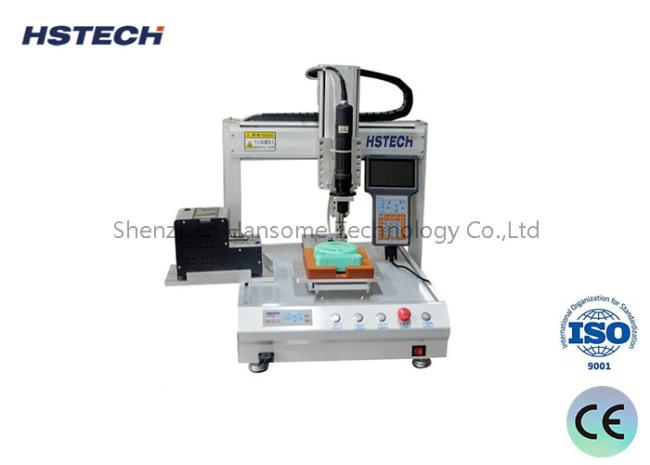

Screw fastening machine consists of two main parts: the feeding system and the fasteninging system. The feeding section, also known as a screw alignment machine or screw feeder, employs a simplified screw alignment design with the core objective of improving work efficiency. As an automated machine, it is widely used in the electronics industry. Particularly noteworthy is the machine's ability to efficiently handle screws ranging in size from M1 to M6.
Specification
| Model | HS-SL551S | HS-SL661S |
| Production name | Automatic Screw Locking Machine | |
| Moving range(X/Y/Z) | 500*500*100mm | 600*600*100mm |
| X/Y axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M5 | |
| Machine dimension | 746*785*800mm | 845*885*800mm |
| Machine weight | 50kg | 55kg |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
Features
1. Suction feeder, efficient and quick.
2.Desktop visual operation, can be integrated in automatic production line.
3. Move range optional: 500x500x100mm or 600x600x100mm.
4.Support multi-screw bin suction mode.
5. Extended applications include dispensing, welding, testing, etc.
6. Compatible with multi-axis and dual-platform configurations.
7. Equipped with functions such as area array duplication and platform duplication.
8. Operating parameters can be downloaded to the controller, supporting offline execution and handheld box storage.
9. Store hundreds of processing files, each file supports 1000 screw bits.
2.Desktop visual operation, can be integrated in automatic production line.
3. Move range optional: 500x500x100mm or 600x600x100mm.
4.Support multi-screw bin suction mode.
5. Extended applications include dispensing, welding, testing, etc.
6. Compatible with multi-axis and dual-platform configurations.
7. Equipped with functions such as area array duplication and platform duplication.
8. Operating parameters can be downloaded to the controller, supporting offline execution and handheld box storage.
9. Store hundreds of processing files, each file supports 1000 screw bits.
